pp.691-696

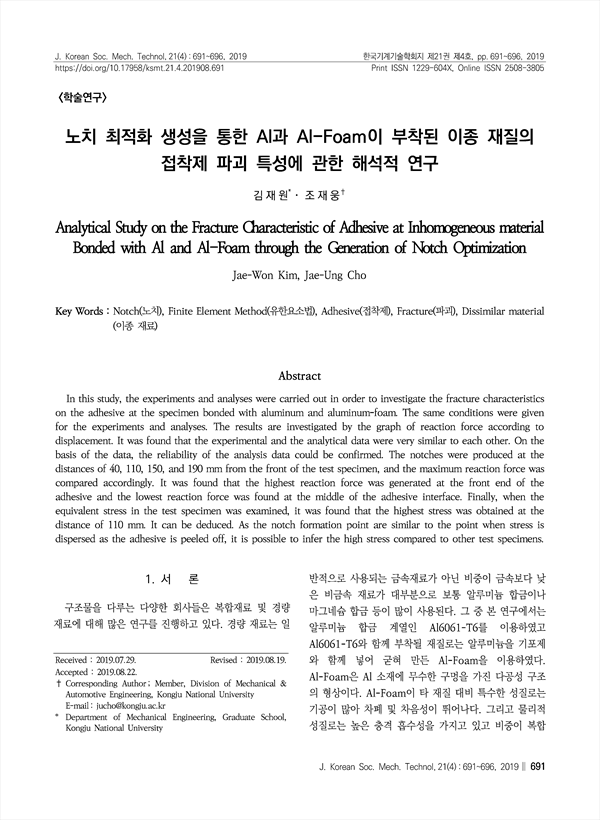

In this study, the experiments and analyses were carried out in order to investigate the fracture characteristics on the adhesive at the specimen bonded with aluminum and aluminum-foam. The same conditions were given for the experiments and analyses. The results are investigated by the graph of reaction force according to displacement. It was found that the experimental and the analytical data were very similar to each other. On the basis of the data, the reliability of the analysis data could be confirmed. The notches were produced at the distances of 40, 110, 150, and 190 mm from the front of the test specimen, and the maximum reaction force was compared accordingly. It was found that the highest reaction force was generated at the front end of the adhesive and the lowest reaction force was found at the middle of the adhesive interface. Finally, when the equivalent stress in the test specimen was examined, it was found that the highest stress was obtained at the distance of 110 mm. It can be deduced. As the notch formation point are similar to the point when stress is dispersed as the adhesive is peeled off, it is possible to infer the high stress compared to other test specimens.
