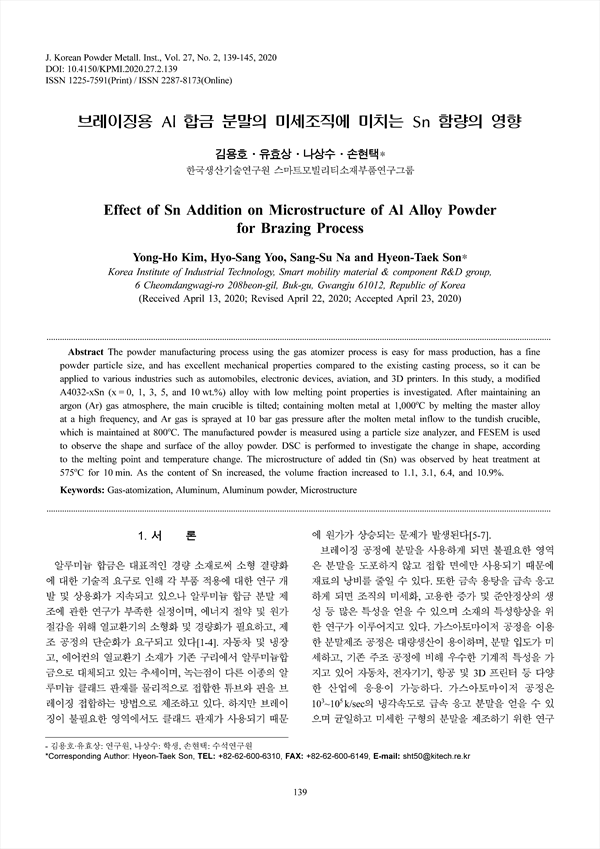

The powder manufacturing process using the gas atomizer process is easy for mass production, has a fine powder particle size, and has excellent mechanical properties compared to the existing casting process, so it can be applied to various industries such as automobiles, electronic devices, aviation, and 3D printers. In this study, a modified A4032-xSn (x = 0, 1, 3, 5, and 10 wt.%) alloy with low melting point properties is investigated. After maintaining an argon (Ar) gas atmosphere, the main crucible is tilted; containing molten metal at 1,000℃ by melting the master alloy at a high frequency, and Ar gas is sprayed at 10 bar gas pressure after the molten metal inflow to the tundish crucible, which is maintained at 800℃. The manufactured powder is measured using a particle size analyzer, and FESEM is used to observe the shape and surface of the alloy powder. DSC is performed to investigate the change in shape, according to the melting point and temperature change. The microstructure of added tin (Sn) was observed by heat treatment at 575℃ for 10 min. As the content of Sn increased, the volume fraction increased to 1.1, 3.1, 6.4, and 10.9%.

Abstract
1. 서 론
2. 실험방법
3. 결과 및 고찰
4. 결 론
References

• 김용호(한국생산기술연구원 스마트모빌리티소재부품연구그룹) | Yong-Ho Kim (Korea Institute of Industrial Technology, Smart mobility material & component R&D group)
• 유효상(한국생산기술연구원 스마트모빌리티소재부품연구그룹) | Hyo-Sang Yoo (Korea Institute of Industrial Technology, Smart mobility material & component R&D group)
• 나상수(한국생산기술연구원 스마트모빌리티소재부품연구그룹) | Sang-Su Na (Korea Institute of Industrial Technology, Smart mobility material & component R&D group)
• 손현택(한국생산기술연구원 스마트모빌리티소재부품연구그룹) | Hyeon-Taek Son (Korea Institute of Industrial Technology, Smart mobility material & component R&D group) Corresponding Author
