논문 상세보기
한국분말야금학회 2006년도 춘계학술대회논문집 (2006.04)
pp.422-423
pp.422-423
한국분말재료학회(구 한국분말야금학회)
(Korean Powder Metallurgy Institute)
초록

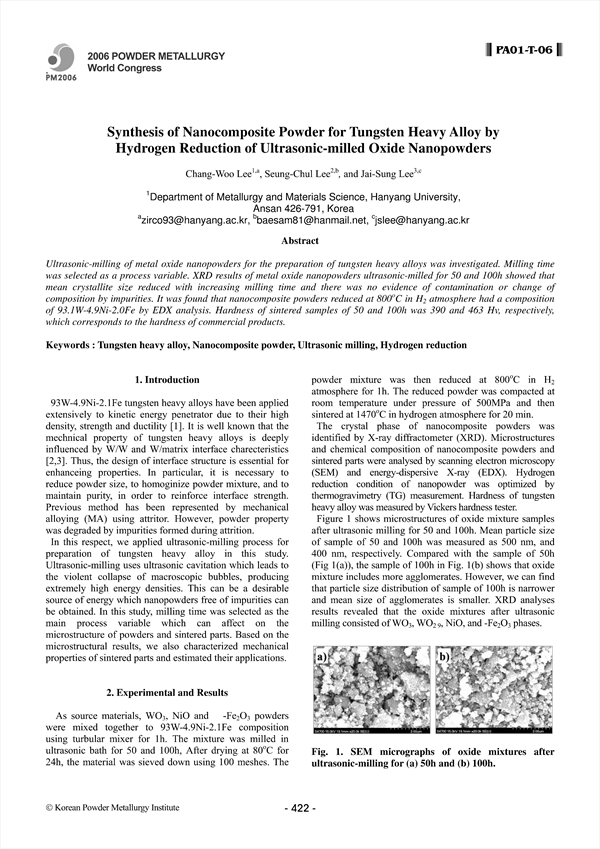

Ultrasonic-milling of metal oxide nanopowders for the preparation of tungsten heavy alloys was investigated. Milling time was selected as a process variable. XRD results of metal oxide nanopowders ultrasonic-milled for 50 and 100h showed that mean crystallite size reduced with increasing milling time and there was no evidence of contamination or change of composition by impurities. It was found that nanocomposite powders reduced at in atmosphere had a composition of 93.1W-4.9Ni-2.0Fe by EDX analysis. Hardness of sintered samples of 50 and 100h was 390 and 463 Hv, respectively, which corresponds to the hardness of commercial products.
저자
