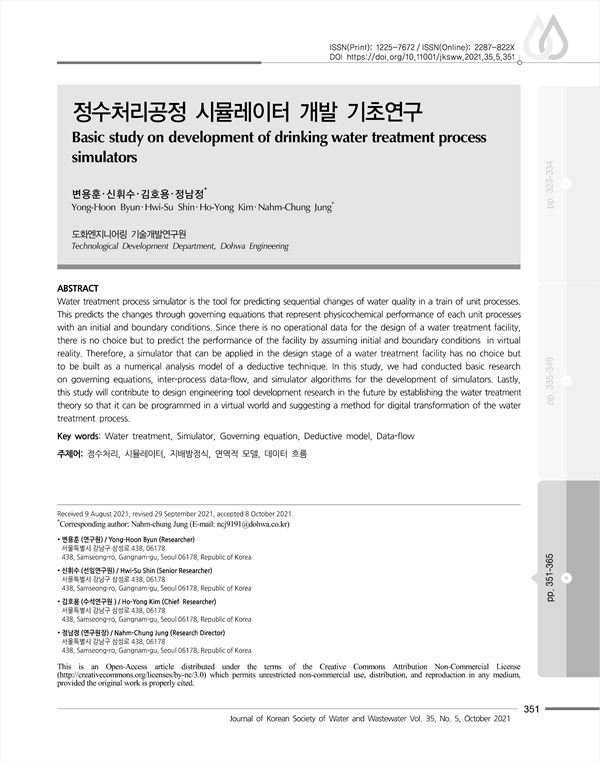

Water treatment process simulator is the tool for predicting sequential changes of water quality in a train of unit processes. This predicts the changes through governing equations that represent physicochemical performance of each unit processes with an initial and boundary conditions. Since there is no operational data for the design of a water treatment facility, there is no choice but to predict the performance of the facility by assuming initial and boundary conditions in virtual reality. Therefore, a simulator that can be applied in the design stage of a water treatment facility has no choice but to be built as a numerical analysis model of a deductive technique. In this study, we had conducted basic research on governing equations, inter-process data-flow, and simulator algorithms for the development of simulators. Lastly, this study will contribute to design engineering tool development research in the future by establishing the water treatment theory so that it can be programmed in a virtual world and suggesting a method for digital transformation of the water treatment process.

ABSTRACT
1. 서 론
2. 연구방법
    2.1 정수처리 공정 선정 및 처리 지배방정식
    2.2 공정 조합 시뮬레이터 프레임 개념
    2.3 시뮬레이터 구성도
    2.4 시뮬레이터의 계산 및 예측성능평가
3. 결과 및 고찰
    3.1 입･출력 변수 및 지배방정식
    3.2 시뮬레이터 검증
    3.3 고찰
4. 결 론
Reference

• 정남정(도화엔지니어링 기술개발연구원) | Nahm-Chung Jung (Technological Development Department, Dohwa Engineering) Corresponding author
• 김호용(도화엔지니어링 기술개발연구원) | Ho-Yong Kim (Technological Development Department, Dohwa Engineering)
• 신휘수(도화엔지니어링 기술개발연구원) | Hwi-Su Shin (Technological Development Department, Dohwa Engineering)
• 변용훈(도화엔지니어링 기술개발연구원) | Yong-Hoon Byun (Technological Development Department, Dohwa Engineering)
