인청동의 전단가공에서 예비 전단가공이 슬리버 발생에 미치는 영향 연구 KCI 등재

A Study on the Effect of Pre-shearing on Sliver Generation in the Shearing of Phosphor Bronze

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/417526
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

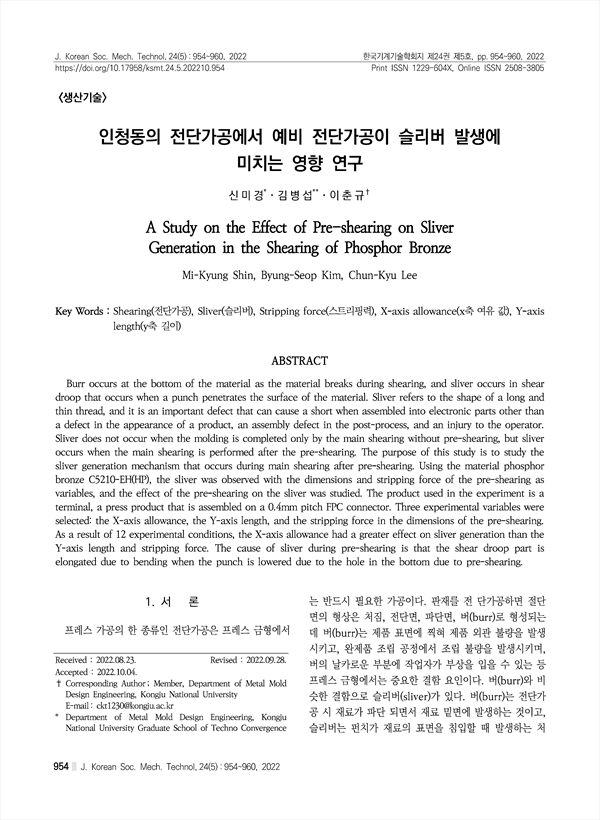

Burr occurs at the bottom of the material as the material breaks during shearing, and sliver occurs in shear droop that occurs when a punch penetrates the surface of the material. Sliver refers to the shape of a long and thin thread, and it is an important defect that can cause a short when assembled into electronic parts other than a defect in the appearance of a product, an assembly defect in the post-process, and an injury to the operator. Sliver does not occur when the molding is completed only by the main shearing without pre-shearing, but sliver occurs when the main shearing is performed after the pre-shearing. The purpose of this study is to study the sliver generation mechanism that occurs during main shearing after pre-shearing. Using the material phosphor bronze C5210-EH(HP), the sliver was observed with the dimensions and stripping force of the pre-shearing as variables, and the effect of the pre-shearing on the sliver was studied. The product used in the experiment is a terminal, a press product that is assembled on a 0.4mm pitch FPC connector. Three experimental variables were selected: the X-axis allowance, the Y-axis length, and the stripping force in the dimensions of the pre-shearing. As a result of 12 experimental conditions, the X-axis allowance had a greater effect on sliver generation than the Y-axis length and stripping force. The cause of sliver during pre-shearing is that the shear droop part is elongated due to bending when the punch is lowered due to the hole in the bottom due to pre-shearing.
