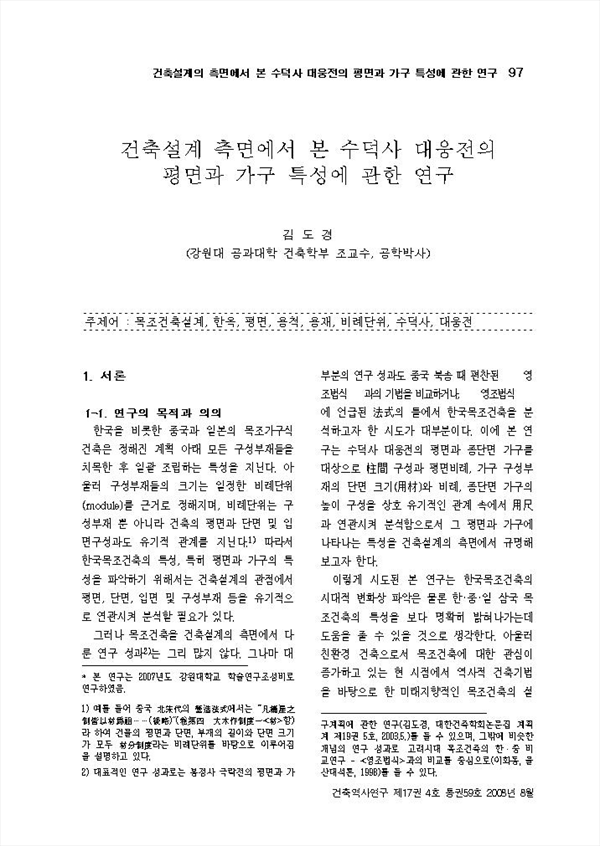

건축설계 측면에서 본 수덕사 대웅전의 평면과 가구 특성에 관한 연구 KCI 등재

A Study on the Architectural Design Characteristics of the Plan and the Structure in Sudeok Temple's Daeung-Jean

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/425341
구독 기관 인증 시 무료 이용이 가능합니다. 4,900원
건축역사연구 (Journal of Architectural History)
한국건축역사학회 (Korean Association of Architectural History)
초록

In this study, I attempted to the architectural design characteristics of Daeung-Jeon in Sudeok Temple. For this purpose, After I set up several assumptions in the basis of the general characteristics of Korean wood architecture, and then, analyzed floor plan, structural formation and section sizes of structure and bracket members in relation to module and unit. As the results, the characteristics of the design process of plan and structure are follows. (1) 1 ja(尺), the unit applied to this building is measured $307.6{\sim}318.3mm$) and the average is 312.9mm (2) It is estimated that the floor plan designed on the basis of the top of columns. By the applied unit, every bay of the front side and the side is each designed by 15 ja and 8.5 ja. (3) The section is composed of piled members which have same section size. As basic module of section size called 'jae(재;材)', it is estimated at width 0.45 ja by height 0.75 ja. And as the secondary module, height between jae and is called 'gyoe(계;)' and it wes designed by three height size of 0.25 ja, 0.27 ja and 0.30 ja, (4) It is estimated that the section plan was designed by the order as follows. Firstly, the horizontal position of purlins wes decided on the basis of the intersection point of long and short rafters, and then the position and the section size of purlins and jangheyo(長舌) wes decided on the basis of the slope of roof and rafters. Secondly, going down from purlins, the members of structure composed of 'jae' and 'gyoe' was repeated. Lastly, for the purpose of linking the structure members located on the center line of adjacent purlins organically, the height of whaban(화반) was controlled.

저자
  • 김도경 (강원대 공과대학 건축학부) | 김도경
