논문 상세보기
Separation of Ce and Hf Using Liquid Bi Intermetallics Density Difference
p.108

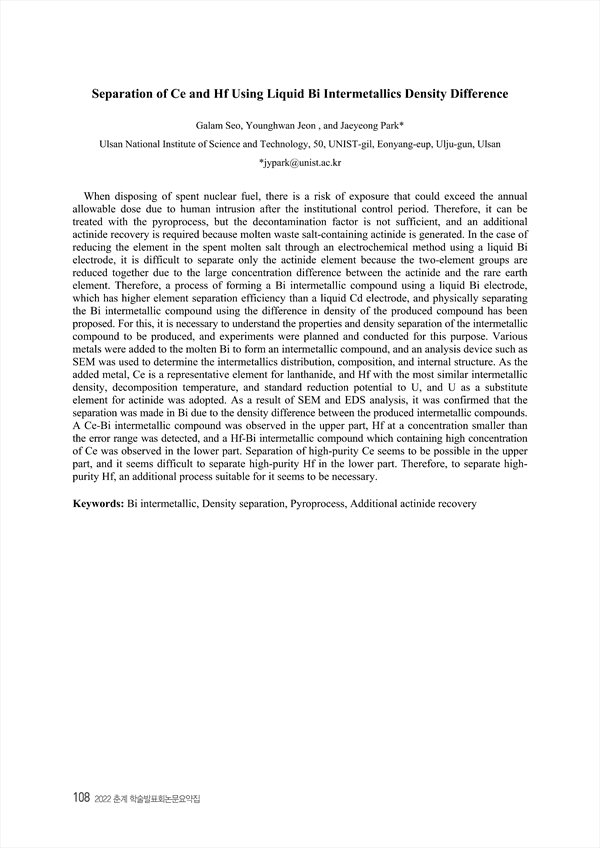

When disposing of spent nuclear fuel, there is a risk of exposure that could exceed the annual allowable dose due to human intrusion after the institutional control period. Therefore, it can be treated with the pyroprocess, but the decontamination factor is not sufficient, and an additional actinide recovery is required because molten waste salt-containing actinide is generated. In the case of reducing the element in the spent molten salt through an electrochemical method using a liquid Bi electrode, it is difficult to separate only the actinide element because the two-element groups are reduced together due to the large concentration difference between the actinide and the rare earth element. Therefore, a process of forming a Bi intermetallic compound using a liquid Bi electrode, which has higher element separation efficiency than a liquid Cd electrode, and physically separating the Bi intermetallic compound using the difference in density of the produced compound has been proposed. For this, it is necessary to understand the properties and density separation of the intermetallic compound to be produced, and experiments were planned and conducted for this purpose. Various metals were added to the molten Bi to form an intermetallic compound, and an analysis device such as SEM was used to determine the intermetallics distribution, composition, and internal structure. As the added metal, Ce is a representative element for lanthanide, and Hf with the most similar intermetallic density, decomposition temperature, and standard reduction potential to U, and U as a substitute element for actinide was adopted. As a result of SEM and EDS analysis, it was confirmed that the separation was made in Bi due to the density difference between the produced intermetallic compounds. A Ce-Bi intermetallic compound was observed in the upper part, Hf at a concentration smaller than the error range was detected, and a Hf-Bi intermetallic compound which containing high concentration of Ce was observed in the lower part. Separation of high-purity Ce seems to be possible in the upper part, and it seems difficult to separate high-purity Hf in the lower part. Therefore, to separate highpurity Hf, an additional process suitable for it seems to be necessary.
