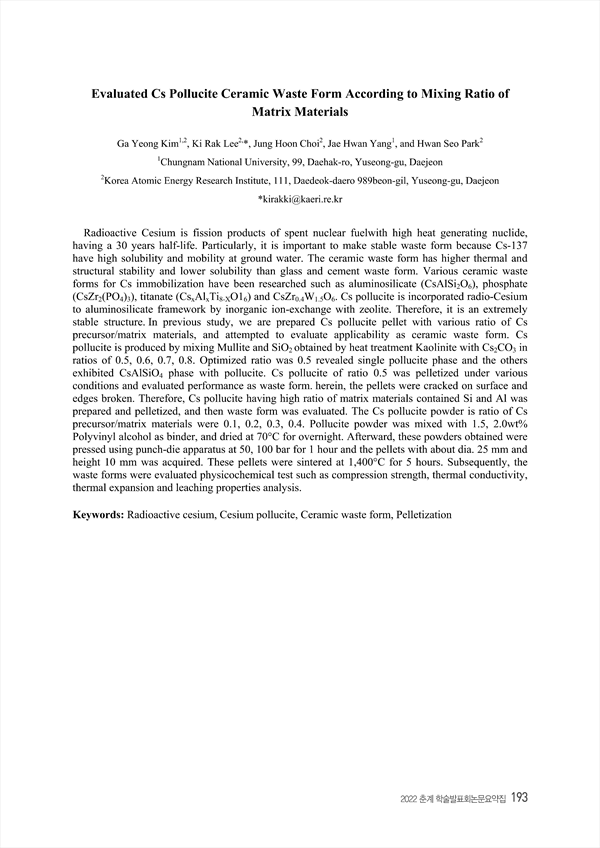

Radioactive Cesium is fission products of spent nuclear fuelwith high heat generating nuclide, having a 30 years half-life. Particularly, it is important to make stable waste form because Cs-137 have high solubility and mobility at ground water. The ceramic waste form has higher thermal and structural stability and lower solubility than glass and cement waste form. Various ceramic waste forms for Cs immobilization have been researched such as aluminosilicate (CsAlSi2O6), phosphate (CsZr2(PO4)3), titanate (CsxAlxTi8-XO16) and CsZr0.4W1.5O6. Cs pollucite is incorporated radio-Cesium to aluminosilicate framework by inorganic ion-exchange with zeolite. Therefore, it is an extremely stable structure. In previous study, we are prepared Cs pollucite pellet with various ratio of Cs precursor/matrix materials, and attempted to evaluate applicability as ceramic waste form. Cs pollucite is produced by mixing Mullite and SiO2 obtained by heat treatment Kaolinite with Cs2CO3 in ratios of 0.5, 0.6, 0.7, 0.8. Optimized ratio was 0.5 revealed single pollucite phase and the others exhibited CsAlSiO4 phase with pollucite. Cs pollucite of ratio 0.5 was pelletized under various conditions and evaluated performance as waste form. herein, the pellets were cracked on surface and edges broken. Therefore, Cs pollucite having high ratio of matrix materials contained Si and Al was prepared and pelletized, and then waste form was evaluated. The Cs pollucite powder is ratio of Cs precursor/matrix materials were 0.1, 0.2, 0.3, 0.4. Pollucite powder was mixed with 1.5, 2.0wt% Polyvinyl alcohol as binder, and dried at 70°C for overnight. Afterward, these powders obtained were pressed using punch-die apparatus at 50, 100 bar for 1 hour and the pellets with about dia. 25 mm and height 10 mm was acquired. These pellets were sintered at 1,400°C for 5 hours. Subsequently, the waste forms were evaluated physicochemical test such as compression strength, thermal conductivity, thermal expansion and leaching properties analysis.

• Ga Yeong Kim(Chungnam National University, 99, Daehak-ro, Yuseong-gu, Daejeon, Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
• Ki Rak Lee(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon) Corresponding author
• Jung Hoon Choi(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
• Jae Hwan Yang(Chungnam National University, 99, Daehak-ro, Yuseong-gu, Daejeon)
• Hwan Seo Park(Korea Atomic Energy Research Institute, 111, Daedeok-daero 989beon-gil, Yuseong-gu, Daejeon)
