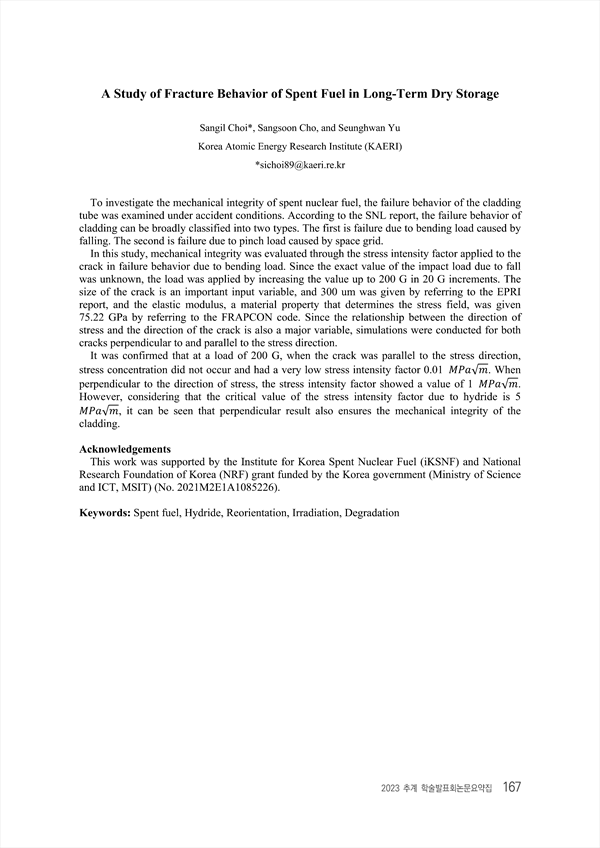

To investigate the mechanical integrity of spent nuclear fuel, the failure behavior of the cladding tube was examined under accident conditions. According to the SNL report, the failure behavior of cladding can be broadly classified into two types. The first is failure due to bending load caused by falling. The second is failure due to pinch load caused by space grid. In this study, mechanical integrity was evaluated through the stress intensity factor applied to the crack in failure behavior due to bending load. Since the exact value of the impact load due to fall was unknown, the load was applied by increasing the value up to 200 G in 20 G increments. The size of the crack is an important input variable, and 300 um was given by referring to the EPRI report, and the elastic modulus, a material property that determines the stress field, was given 75.22 GPa by referring to the FRAPCON code. Since the relationship between the direction of stress and the direction of the crack is also a major variable, simulations were conducted for both cracks perpendicular to and parallel to the stress direction. It was confirmed that at a load of 200 G, when the crack was parallel to the stress direction, stress concentration did not occur and had a very low stress intensity factor 0.01 􀜯􀜲􀜽√􀝉. When perpendicular to the direction of stress, the stress intensity factor showed a value of 1 􀜯􀜲􀜽√􀝉. However, considering that the critical value of the stress intensity factor due to hydride is 5 􀜯􀜲􀜽√􀝉, it can be seen that perpendicular result also ensures the mechanical integrity of the cladding.

• Sangil Choi(Korea Atomic Energy Research Institute (KAERI)) Corresponding author
• Sangsoon Cho(Korea Atomic Energy Research Institute (KAERI))
• Seunghwan Yu(Korea Atomic Energy Research Institute (KAERI))
