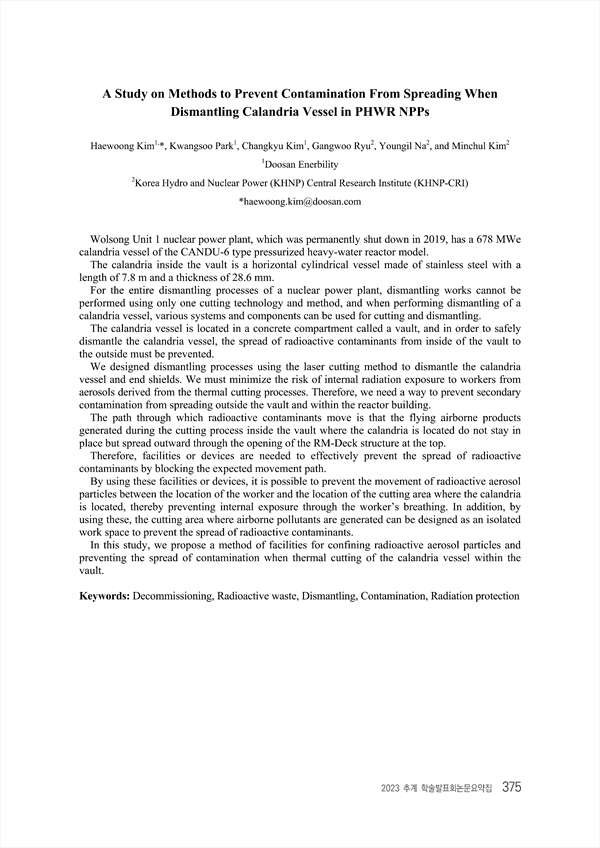

A Study on Methods to Prevent Contamination From Spreading When Dismantling Calandria Vessel in PHWR NPPs
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/431430
p.375
Wolsong Unit 1 nuclear power plant, which was permanently shut down in 2019, has a 678 MWe calandria vessel of the CANDU-6 type pressurized heavy-water reactor model. The calandria inside the vault is a horizontal cylindrical vessel made of stainless steel with a length of 7.8 m and a thickness of 28.6 mm. For the entire dismantling processes of a nuclear power plant, dismantling works cannot be performed using only one cutting technology and method, and when performing dismantling of a calandria vessel, various systems and components can be used for cutting and dismantling. The calandria vessel is located in a concrete compartment called a vault, and in order to safely dismantle the calandria vessel, the spread of radioactive contaminants from inside of the vault to the outside must be prevented. We designed dismantling processes using the laser cutting method to dismantle the calandria vessel and end shields. We must minimize the risk of internal radiation exposure to workers from aerosols derived from the thermal cutting processes. Therefore, we need a way to prevent secondary contamination from spreading outside the vault and within the reactor building. The path through which radioactive contaminants move is that the flying airborne products generated during the cutting process inside the vault where the calandria is located do not stay in place but spread outward through the opening of the RM-Deck structure at the top. Therefore, facilities or devices are needed to effectively prevent the spread of radioactive contaminants by blocking the expected movement path. By using these facilities or devices, it is possible to prevent the movement of radioactive aerosol particles between the location of the worker and the location of the cutting area where the calandria is located, thereby preventing internal exposure through the worker’s breathing. In addition, by using these, the cutting area where airborne pollutants are generated can be designed as an isolated work space to prevent the spread of radioactive contaminants. In this study, we propose a method of facilities for confining radioactive aerosol particles and preventing the spread of contamination when thermal cutting of the calandria vessel within the vault.
