논문 상세보기

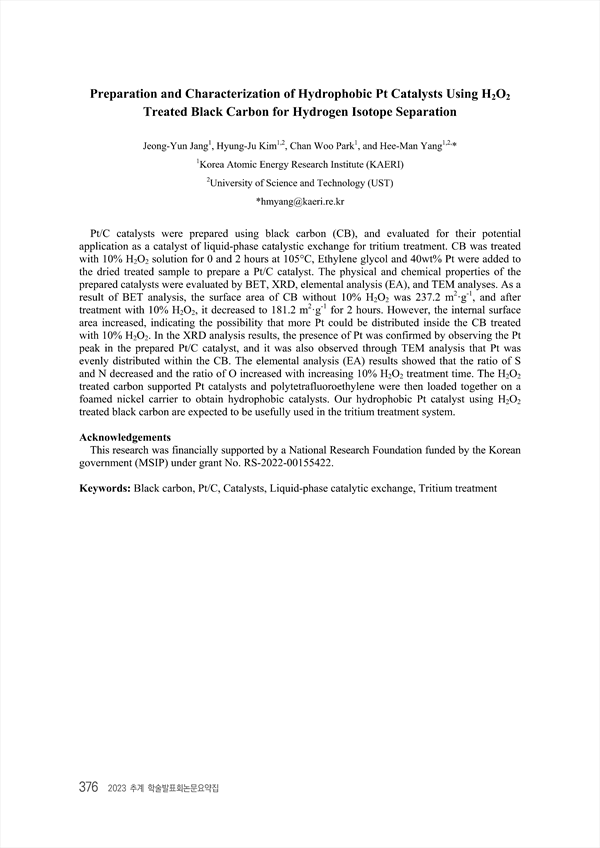

Preparation and Characterization of Hydrophobic Pt Catalysts Using H2O2 Treated Black Carbon for Hydrogen Isotope Separation

  • 언어ENG
  • URLhttps://db.koreascholar.com/Article/Detail/431431
모든 회원에게 무료로 제공됩니다.
한국방사성폐기물학회 학술논문요약집 (Abstracts of Proceedings of the Korean Radioactive Wasts Society)
한국방사성폐기물학회 (Korean Radioactive Waste Society)
초록

Pt/C catalysts were prepared using black carbon (CB), and evaluated for their potential application as a catalyst of liquid-phase catalystic exchange for tritium treatment. CB was treated with 10% H2O2 solution for 0 and 2 hours at 105°C, Ethylene glycol and 40wt% Pt were added to the dried treated sample to prepare a Pt/C catalyst. The physical and chemical properties of the prepared catalysts were evaluated by BET, XRD, elemental analysis (EA), and TEM analyses. As a result of BET analysis, the surface area of CB without 10% H2O2 was 237.2 m2·g-1, and after treatment with 10% H2O2, it decreased to 181.2 m2·g-1 for 2 hours. However, the internal surface area increased, indicating the possibility that more Pt could be distributed inside the CB treated with 10% H2O2. In the XRD analysis results, the presence of Pt was confirmed by observing the Pt peak in the prepared Pt/C catalyst, and it was also observed through TEM analysis that Pt was evenly distributed within the CB. The elemental analysis (EA) results showed that the ratio of S and N decreased and the ratio of O increased with increasing 10% H2O2 treatment time. The H2O2 treated carbon supported Pt catalysts and polytetrafluoroethylene were then loaded together on a foamed nickel carrier to obtain hydrophobic catalysts. Our hydrophobic Pt catalyst using H2O2 treated black carbon are expected to be usefully used in the tritium treatment system.

저자
  • Jeong-Yun Jang(Korea Atomic Energy Research Institute (KAERI))
  • Hyung-Ju Kim(Korea Atomic Energy Research Institute (KAERI), University of Science and Technology (UST))
  • Chan Woo Park(Korea Atomic Energy Research Institute (KAERI))
  • Hee-Man Yang(Korea Atomic Energy Research Institute (KAERI), University of Science and Technology (UST)) Corresponding author
