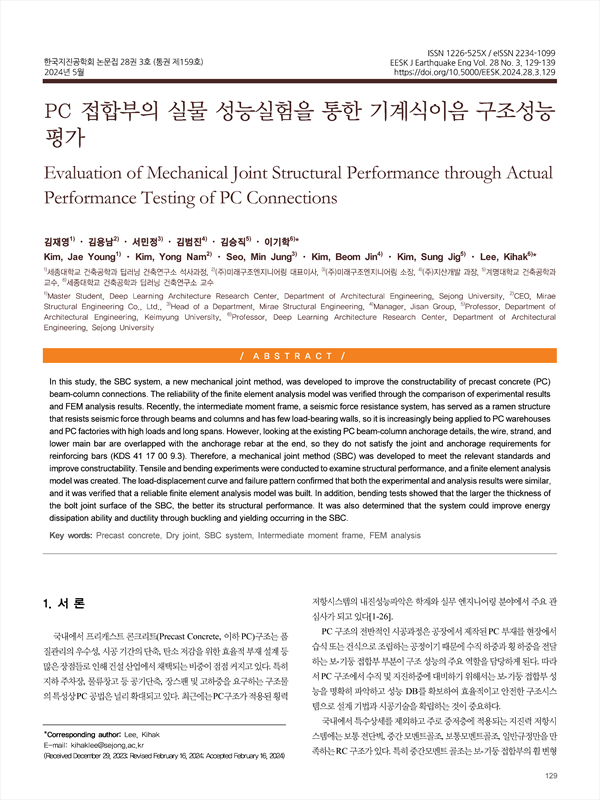

PC 접합부의 실물 성능실험을 통한 기계식이음 구조성능 평가 KCI 등재

Evaluation of Mechanical Joint Structural Performance through Actual Performance Testing of PC Connections

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/432997
구독 기관 인증 시 무료 이용이 가능합니다. 4,200원
한국지진공학회 (Earthquake Engineering Society of Korea)
초록

In this study, the SBC system, a new mechanical joint method, was developed to improve the constructability of precast concrete (PC) beam-column connections. The reliability of the finite element analysis model was verified through the comparison of experimental results and FEM analysis results. Recently, the intermediate moment frame, a seismic force resistance system, has served as a ramen structure that resists seismic force through beams and columns and has few load-bearing walls, so it is increasingly being applied to PC warehouses and PC factories with high loads and long spans. However, looking at the existing PC beam-column anchorage details, the wire, strand, and lower main bar are overlapped with the anchorage rebar at the end, so they do not satisfy the joint and anchorage requirements for reinforcing bars (KDS 41 17 00 9.3). Therefore, a mechanical joint method (SBC) was developed to meet the relevant standards and improve constructability. Tensile and bending experiments were conducted to examine structural performance, and a finite element analysis model was created. The load-displacement curve and failure pattern confirmed that both the experimental and analysis results were similar, and it was verified that a reliable finite element analysis model was built. In addition, bending tests showed that the larger the thickness of the bolt joint surface of the SBC, the better its structural performance. It was also determined that the system could improve energy dissipation ability and ductility through buckling and yielding occurring in the SBC.

목차
1. 서 론
2. 기술개발 배경
3. 실험계획
    3.1 실험체 상세
    3.2 제작 및 재료강도
    3.3 가력 및 계측
4. 실험 결과
    4.1 하중-변위 및 변형률 관계
    4.2 파괴모드
5. 유한요소해석을 통한 성능검증
    5.1 유한요소해석 개요 및 절차
    5.2 하중-변위곡선
    5.3 파괴모드
6. 요약 및 결론
/ REFERENCES /
저자
  • 김재영(세종대학교 건축공학과 딥러닝 건축연구소 석사과정) | Kim Jae Young (Master Student, Deep Learning Architecture Research Center, Department of Architectural Engineering, Sejong University)
  • 김용남((주)미래구조엔지니어링 대표이사) | Kim Yong Nam (CEO, Mirae Structural Engineering Co., Ltd.)
  • 서민정((주)미래구조엔지니어링 소장) | Seo Min Jung (Head of a Department, Mirae Structural Engineering)
  • 김범진((주)지산개발 과장) | Kim Beom Jin (Manager, Jisan Group)
  • 김승직(계명대학교 건축공학과 교수) | Kim Sung Jig (Professor, Department of Architectural Engineering, Keimyung University)
  • 이기학(세종대학교 건축공학과 딥러닝 건축연구소 교수) | Lee Kihak (Professor, Deep Learning Architecture Research Center, Department of Architectural Engineering, Sejong University) Corresponding author
