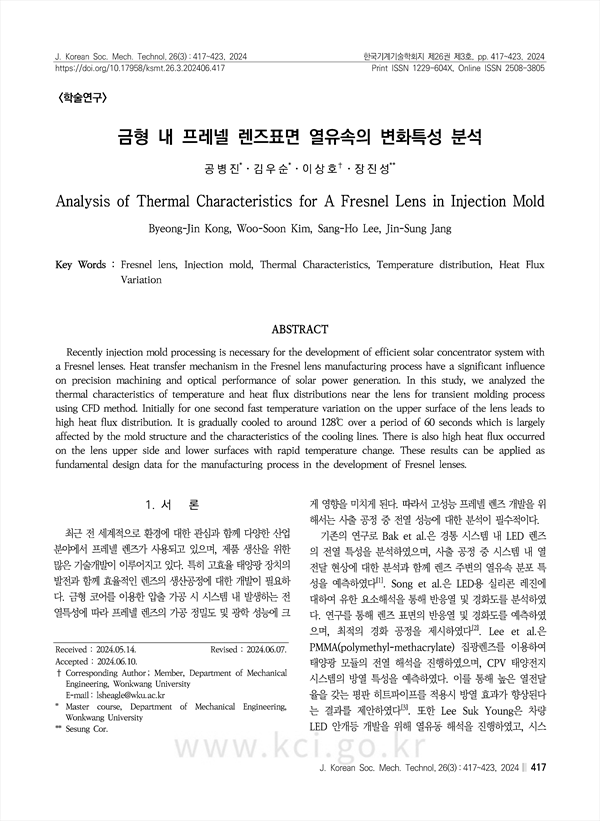

Recently injection mold processing is necessary for the development of efficient solar concentrator system with a Fresnel lenses. Heat transfer mechanism in the Fresnel lens manufacturing process have a significant influence on precision machining and optical performance of solar power generation. In this study, we analyzed the thermal characteristics of temperature and heat flux distributions near the lens for transient molding process using CFD method. Initially for one second fast temperature variation on the upper surface of the lens leads to high heat flux distribution. It is gradually cooled to around 128℃ over a period of 60 seconds which is largely affected by the mold structure and the characteristics of the cooling lines. There is also high heat flux occurred on the lens upper side and lower surfaces with rapid temperature change. These results can be applied as fundamental design data for the manufacturing process in the development of Fresnel lenses.
