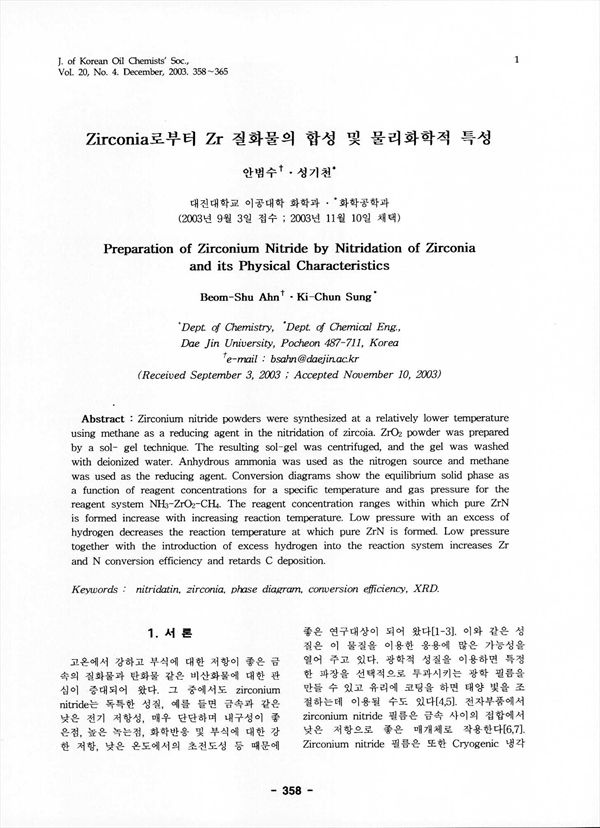

Zirconium nitride powders were synthesized at a relatively lower temperature using methane as a reducing agent in the nitridation of zircoia. ZrO2 powder was prepared by a sol-gel technique. The resulting sol-gel was centrifuged, and the gel was washed with deionized water. Anhydrous ammonia was used as the nitrogen source and methane was used as the reducing agent. Conversion diagrams show the equilibrium solid phase as a function of reagent concentrations for a specific temperature and gas pressure for the reagent system NH3-ZrO2-CH4. The reagent concentration ranges within which pure ZrN is formed increase with increasing reaction temperature. Low pressure with an excess of hydrogen decreases the reaction temperature at which pure ZrN is formed. Low pressure together with the introduction of excess hydrogen into the reaction system increases Zr and N conversion efficiency and retards C deposition.

• 안범수 | Ahn, Beom-Shu
• 성기천 | Sung, Ki-Chun
