pp.289-299

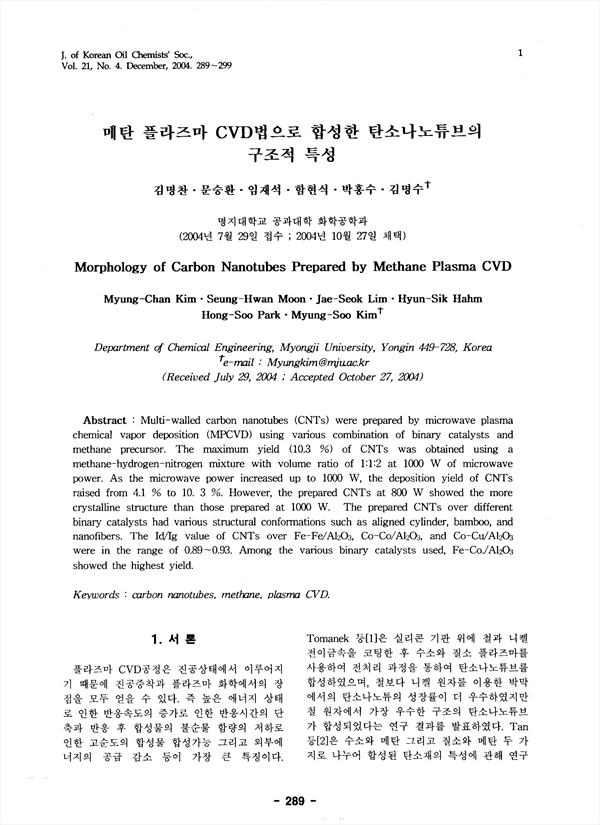

Multi-walled carbon nanotubes (CNTs) were prepared by microwave plasma chemical vapor deposition (MPCVD) using various combination of binary catalysts and methane precursor. The maximum yield (10.3 %) of CNTs was obtained using a methane-hydrogen-nitrogen mixture with volume ratio of 1:1:2 at 1000 W of microwave power. As the microwave power increased up to 1000 W, the deposition yield of CNTs raised from 4.1 % to 10. 3 %. However, the prepared CNTs at 800 W showed the more crystalline structure than those prepared at 1000 W. The prepared CNTs over different binary catalysts had various structural conformations such as aligned cylinder, bamboo, and nanofibers. The Id/Ig value of CNTs overFe-Fe/Al2O3, Co-Co/Al2O3, and Co-Cu/Al2O3 were in the range of 0.89~0.93. Among the various binary catalysts used, Fe-Co./Al2O3 showed the highest yield.
