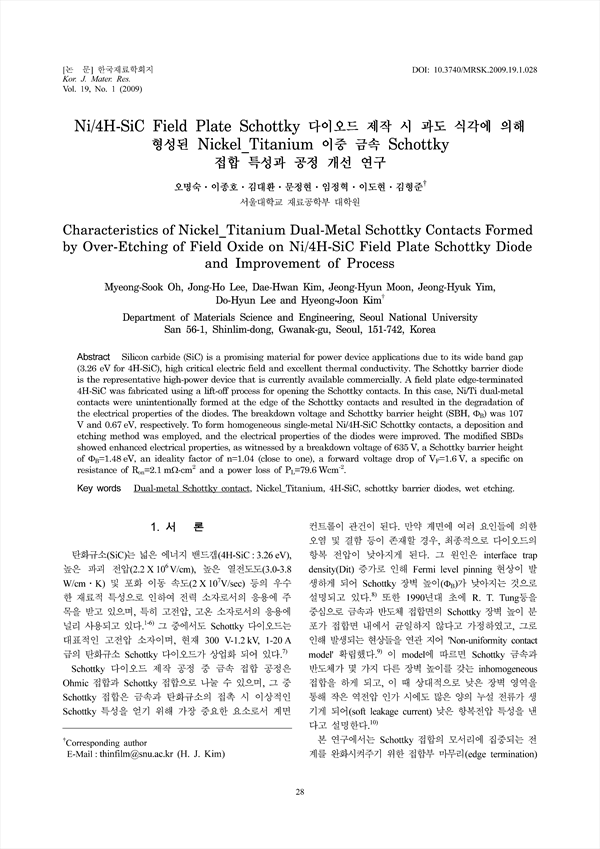

Ni/4H-SiC Field Plate Schottky 다이오드 제작 시 과도 식각에 의해 형성된 Nickeltitanium 이중 금속 Schottky 접합 특성과 공정 개선 연구 KCI 등재 SCOPUS
Characteristics of Nickeltitanium Dual-Metal Schottky Contacts Formed by Over-Etching of Field Oxide on Ni/4H-SiC Field Plate Schottky Diode and Improvement of Process
pp.28-32
Silicon carbide (SiC) is a promising material for power device applications due to its wide band gap(3.26 eV for 4H-SiC), high critical electric field and excellent thermal conductivity. The Schottky barrier diodeis the representative high-power device that is currently available commercially. A field plate edge-terminated4H-SiC was fabricated using a lift-off process for opening the Schottky contacts. In this case, Ni/Ti dual-metalcontacts were unintentionally formed at the edge of the Schottky contacts and resulted in the degradation ofthe electrical properties of the diodes. The breakdown voltage and Schottky barrier height (SBH, ΦB) was 107V and 0.67eV, respectively. To form homogeneous single-metal Ni/4H-SiC Schottky contacts, a deposition andetching method was employed, and the electrical properties of the diodes were improved. The modified SBDsshowed enhanced electrical properties, as witnessed by a breakdown voltage of 635V, a Schottky barrier heightof ΦB=1.48eV, an ideality factor of n=1.04 (close to one), a forward voltage drop of VF=1.6V, a specific onresistance of Ron=2.1mΩ-cm2 and a power loss of PL=79.6Wcm-2.
