논문 상세보기
pp.128-134

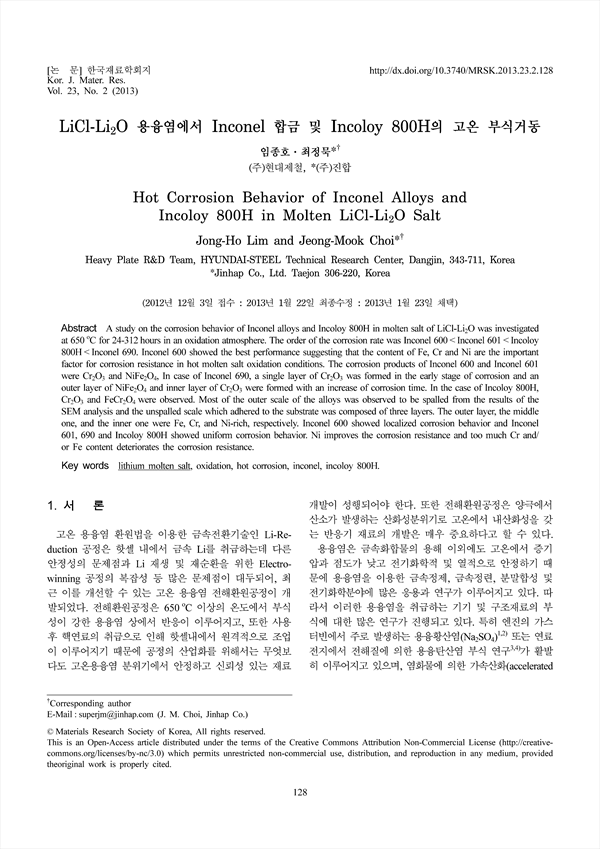

A study on the corrosion behavior of Inconel alloys and Incoloy 800H in molten salt of LiCl-Li2O was investigated at 650˚C for 24-312 hours in an oxidation atmosphere. The order of the corrosion rate was Inconel 600< Inconel 601< Incoloy 800H< Inconel 690. Inconel 600 showed the best performance suggesting that the content of Fe, Cr and Ni are the important factor for corrosion resistance in hot molten salt oxidation conditions. The corrosion products of Inconel 600 and Inconel 601 were Cr2O3 and NiFe2O4, In case of Inconel 690, a single layer of Cr2O3 was formed in the early stage of corrosion and an outer layer of NiFe2O4 and inner layer of Cr2O3 were formed with an increase of corrosion time. In the case of Incoloy 800H, Cr2O3 and FeCr2O4 were observed. Most of the outer scale of the alloys was observed to be spalled from the results of the SEM analysis and the unspalled scale which adhered to the substrate was composed of three layers. The outer layer, the middle one, and the inner one were Fe, Cr, and Ni-rich, respectively. Inconel 600 showed localized corrosion behavior and Inconel 601, 690 and Incoloy 800H showed uniform corrosion behavior. Ni improves the corrosion resistance and too much Cr and/or Fe content deteriorates the corrosion resistance.
