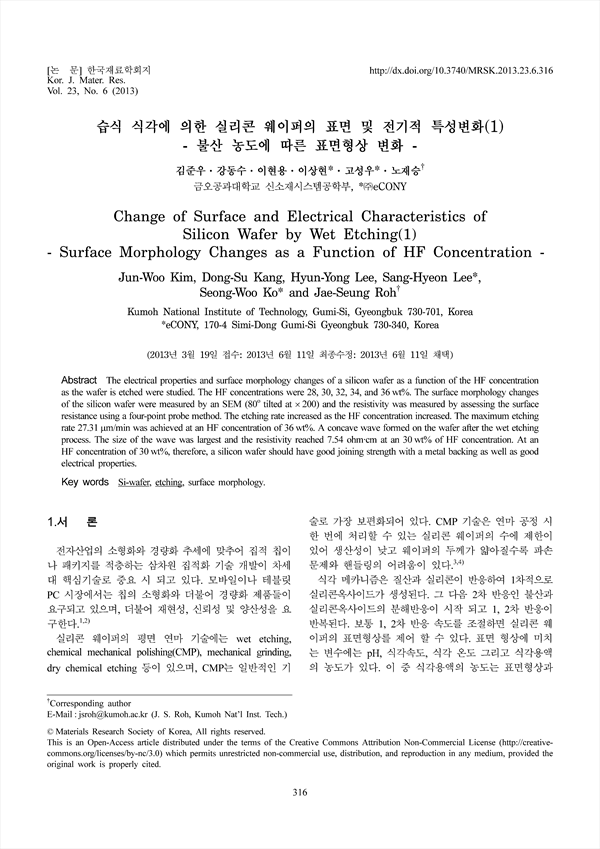

습식 식각에 의한 실리콘 웨이퍼의 표면 및 전기적 특성변화(1) - 불산 농도에 따른 표면형상 변화 - KCI 등재 SCOPUS

Change of Surface and Electrical Characteristics of Silicon Wafer by Wet Etching(1) - Surface Morphology Changes as a Function of HF Concentration -

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297454
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

The electrical properties and surface morphology changes of a silicon wafer as a function of the HF concentration as the wafer is etched were studied. The HF concentrations were 28, 30, 32, 34, and 36 wt%. The surface morphology changes of the silicon wafer were measured by an SEM (80˚ tilted at ×200) and the resistivity was measured by assessing the surface resistance using a four-point probe method. The etching rate increased as the HF concentration increased. The maximum etching rate 27.31 μm/min was achieved at an HF concentration of 36 wt%. A concave wave formed on the wafer after the wet etching process. The size of the wave was largest and the resistivity reached 7.54 ohm·cm at an 30 wt% of HF concentration. At an HF concentration of 30 wt%, therefore, a silicon wafer should have good joining strength with a metal backing as well as good electrical properties.

저자
  • 김준우(금오공과대학교 신소재시스템공학부) | Kim, Jun-Woo
  • 강동수( 금오공과대학교 신소재시스템공학부) | 강동수
  • 이현용( 금오공과대학교 신소재시스템공학부) | 이현용
  • 이상현( ㈜eCONY) | 이상현
  • 고성우( ㈜eCONY) | 고성우
  • 노재승( 금오공과대학교 신소재시스템공학부) | 노재승
