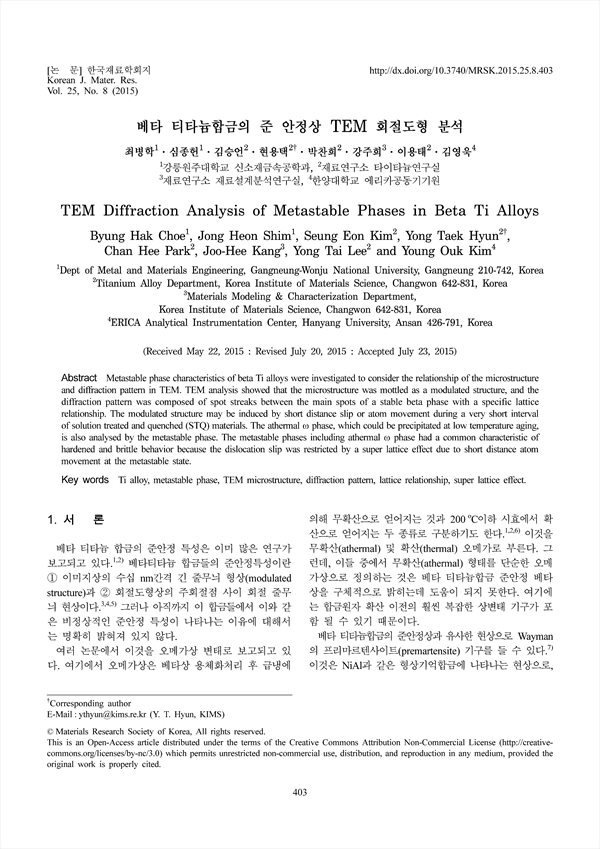

Metastable phase characteristics of beta Ti alloys were investigated to consider the relationship of the microstructureand diffraction pattern in TEM. TEM analysis showed that the microstructure was mottled as a modulated structure, and thediffraction pattern was composed of spot streaks between the main spots of a stable beta phase with a specific latticerelationship. The modulated structure may be induced by short distance slip or atom movement during a very short intervalof solution treated and quenched (STQ) materials. The athermal ω phase, which could be precipitated at low temperature aging,is also analysed by the metastable phase. The metastable phases including athermal ω phase had a common characteristic ofhardened and brittle behavior because the dislocation slip was restricted by a super lattice effect due to short distance atommovement at the metastable state.
