pp.14-29

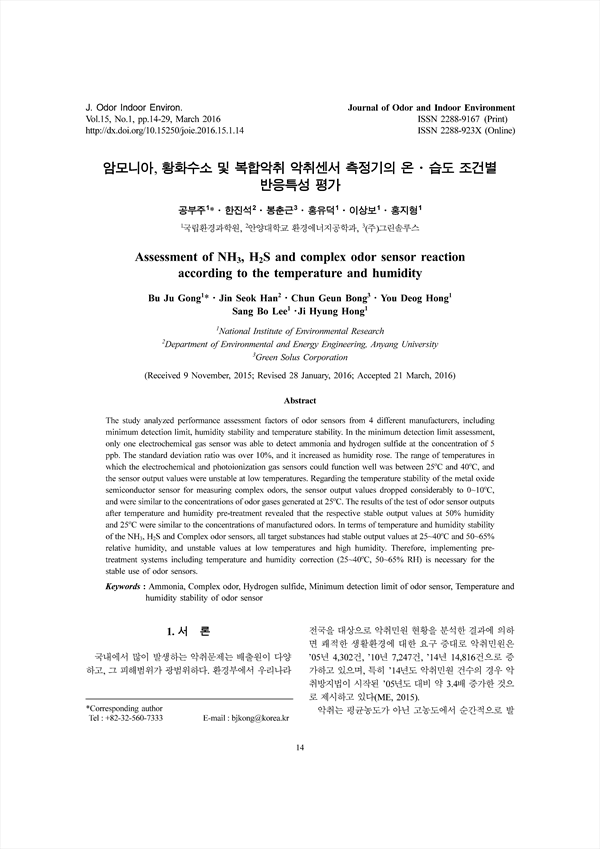

The study analyzed performance assessment factors of odor sensors from 4 different manufacturers, including minimum detection limit, humidity stability and temperature stability. In the minimum detection limit assessment, only one electrochemical gas sensor was able to detect ammonia and hydrogen sulfide at the concentration of 5 ppb. The standard deviation ratio was over 10%, and it increased as humidity rose. The range of temperatures in which the electrochemical and photoionization gas sensors could function well was between 25oC and 40oC, and the sensor output values were unstable at low temperatures. Regarding the temperature stability of the metal oxide semiconductor sensor for measuring complex odors, the sensor output values dropped considerably to 0~10oC, and were similar to the concentrations of odor gases generated at 25oC. The results of the test of odor sensor outputs after temperature and humidity pre-treatment revealed that the respective stable output values at 50% humidity and 25oC were similar to the concentrations of manufactured odors. In terms of temperature and humidity stability of the NH3, H2S and Complex odor sensors, all target substances had stable output values at 25~40oC and 50~65% relative humidity, and unstable values at low temperatures and high humidity. Therefore, implementing pretreatment systems including temperature and humidity correction (25~40oC, 50~65% RH) is necessary for the stable use of odor sensors.
2. 연구내용 및 방법
2.1 악취센서의 종류 및 특성
2.2 악취센서 측정기의 온·습도 감지특성 분석
2.3 악취센서 측정기의 온·습도 안정성 실험
2.4 악취센서 측정기의 온·습도 전처리 실험
3. 연구결과 및 고찰
3.1 악취 가스센서의 최소검출한도
3.2 악취센서의 온도 안정성
3.3 악취센서의 습도 안정성
3.4 악취센서의 온·습도 전처리 실험
4. 결 론
References
