논문 상세보기

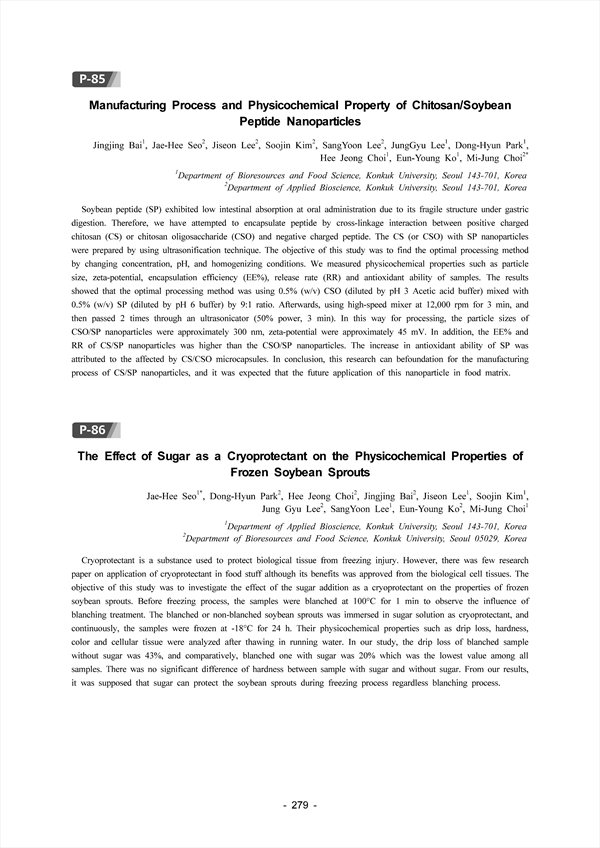

Manufacturing Process and Physicochemical Property of Chitosan/Soybean Peptide Nanoparticles
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/322052
Soybean peptide (SP) exhibited low intestinal absorption at oral administration due to its fragile structure under gastric digestion. Therefore, we have attempted to encapsulate peptide by cross-linkage interaction between positive charged chitosan (CS) or chitosan oligosaccharide (CSO) and negative charged peptide. The CS (or CSO) with SP nanoparticles were prepared by using ultrasonification technique. The objective of this study was to find the optimal processing method by changing concentration, pH, and homogenizing conditions. We measured physicochemical properties such as particle size, zeta-potential, encapsulation efficiency (EE%), release rate (RR) and antioxidant ability of samples. The results showed that the optimal processing method was using 0.5% (w/v) CSO (diluted by pH 3 Acetic acid buffer) mixed with 0.5% (w/v) SP (diluted by pH 6 buffer) by 9:1 ratio. Afterwards, using high-speed mixer at 12,000 rpm for 3 min, and then passed 2 times through an ultrasonicator (50% power, 3 min). In this way for processing, the particle sizes of CSO/SP nanoparticles were approximately 300 nm, zeta-potential were approximately 45 mV. In addition, the EE% and RR of CS/SP nanoparticles was higher than the CSO/SP nanoparticles. The increase in antioxidant ability of SP was attributed to the affected by CS/CSO microcapsules. In conclusion, this research can befoundation for the manufacturing process of CS/SP nanoparticles, and it was expected that the future application of this nanoparticle in food matrix.
