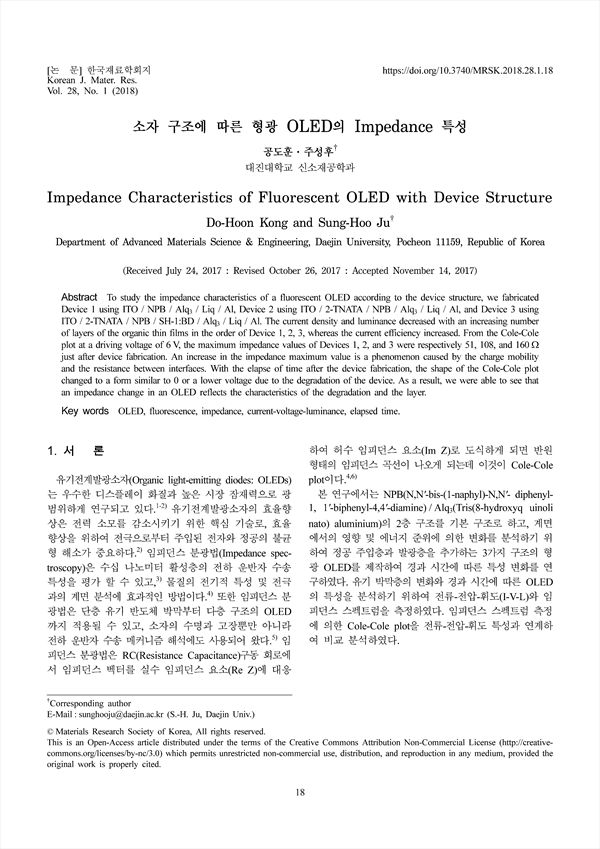

To study the impedance characteristics of a fluorescent OLED according to the device structure, we fabricated Device 1 using ITO / NPB / Alq3 / Liq / Al, Device 2 using ITO / 2-TNATA / NPB / Alq3 / Liq / Al, and Device 3 using ITO / 2-TNATA / NPB / SH-1:BD / Alq3 / Liq / Al. The current density and luminance decreased with an increasing number of layers of the organic thin films in the order of Device 1, 2, 3, whereas the current efficiency increased. From the Cole-Cole plot at a driving voltage of 6 V, the maximum impedance values of Devices 1, 2, and 3 were respectively 51, 108, and 160 Ω just after device fabrication. An increase in the impedance maximum value is a phenomenon caused by the charge mobility and the resistance between interfaces. With the elapse of time after the device fabrication, the shape of the Cole-Cole plot changed to a form similar to 0 or a lower voltage due to the degradation of the device. As a result, we were able to see that an impedance change in an OLED reflects the characteristics of the degradation and the layer.

1. 서 론
 2. 실험 방법
 3. 결과 및 고찰
 4. 결 론
 References

• 공도훈(대진대학교 신소재공학과) | Do-Hoon Kong (Department of Advanced Materials Science & Engineering, Daejin University)
• 주성후(대진대학교 신소재공학과) | Sung-Hoo Ju (Department of Advanced Materials Science & Engineering, Daejin University) Corresponding author
