pp.951-960

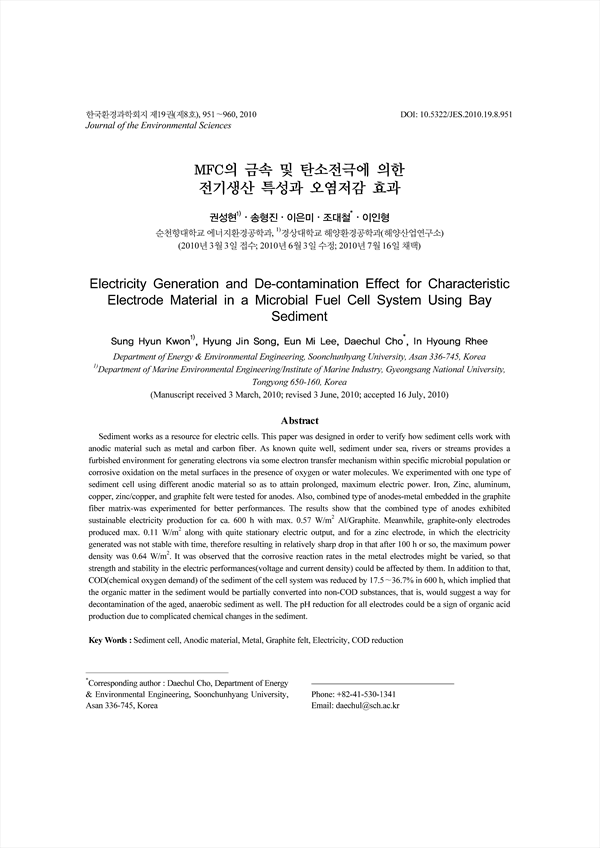

Sediment works as a resource for electric cells. This paper was designed in order to verify how sediment cells work with anodic material such as metal and carbon fiber. As known quite well, sediment under sea, rivers or streams provides a furbished environment for generating electrons via some electron transfer mechanism within specific microbial population or corrosive oxidation on the metal surfaces in the presence of oxygen or water molecules. We experimented with one type of sediment cell using different anodic material so as to attain prolonged, maximum electric power. Iron, Zinc, aluminum, copper, zinc/copper, and graphite felt were tested for anodes. Also, combined type of anodes-metal embedded in the graphite fiber matrix-was experimented for better performances. The results show that the combined type of anodes exhibited sustainable electricity production for ca. 600 h with max. 0.57 W/㎡ Al/Graphite. Meanwhile, graphite-only electrodes produced max. 0.11 W/㎡ along with quite stationary electric output, and for a zinc electrode, in which the electricity generated was not stable with time, therefore resulting in relatively sharp drop in that after 100 h or so, the maximum power density was 0.64 W/㎡. It was observed that the corrosive reaction rates in the metal electrodes might be varied, so that strength and stability in the electric performances(voltage and current density) could be affected by them. In addition to that, COD(chemical oxygen demand) of the sediment of the cell system was reduced by 17.5∼36.7% in 600 h, which implied that the organic matter in the sediment would be partially converted into non-COD substances, that is, would suggest a way for decontamination of the aged, anaerobic sediment as well. The pH reduction for all electrodes could be a sign of organic acid production due to complicated chemical changes in the sediment.
1. 서 론
2. 이론적 배경
3. 재료 및 방법
3.1. 퇴적물 시료 채취
3.2. 전극 및 전지 구성
3.3. 퇴적토 성상분석
3.4. 전기발생 분석
4. 결과 및 고찰
4.1. 퇴적토에 따른 전기발생 및 퇴적토변화
4.2. 금속전극의 전기발생 및 퇴적토 변화
4.3. 복합전극의 전기발생
4.4. 탄소전극과 복합전극의 전기저항 고찰
4.5. 단위금속 면적당 전류밀도
4.6. 퇴적토의 pH 및 COD 변화
5. 결 론
참 고 문 헌
