논문 상세보기
pp.157-158

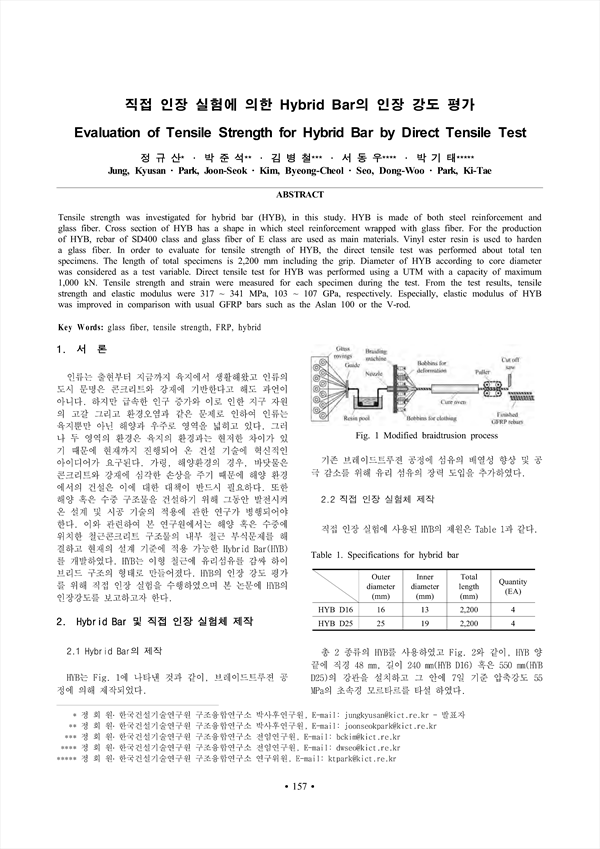

Tensile strength was investigated for hybrid bar (HYB), in this study. HYB is made of both steel reinforcement and glass fiber. Cross section of HYB has a shape in which steel reinforcement wrapped with glass fiber. For the production of HYB, rebar of SD400 class and glass fiber of E class are used as main materials. Vinyl ester resin is used to harden a glass fiber. In order to evaluate for tensile strength of HYB, the direct tensile test was performed about total ten specimens. The length of total specimens is 2,200 mm including the grip. Diameter of HYB according to core diameter was considered as a test variable. Direct tensile test for HYB was performed using a UTM with a capacity of maximum 1,000 kN. Tensile strength and strain were measured for each specimen during the test. From the test results, tensile strength and elastic modulus were 317 ~ 341 MPa, 103 ~ 107 GPa, respectively. Especially, elastic modulus of HYB was improved in comparison with usual GFRP bars such as the Aslan 100 or the V-rod.
1. 서 론
2. Hybrid Bar 및 직접 인장 실험체 제작
2.1 Hybrid Bar의 제작
2.2 직접 인장 실험체 제작
3. 직접 인장 실험 및 결과의 분석
3.1 HYB의 직접 인장 실험
3.2 실험 결과의 분석
4. 결 론
References
