pp.59-67

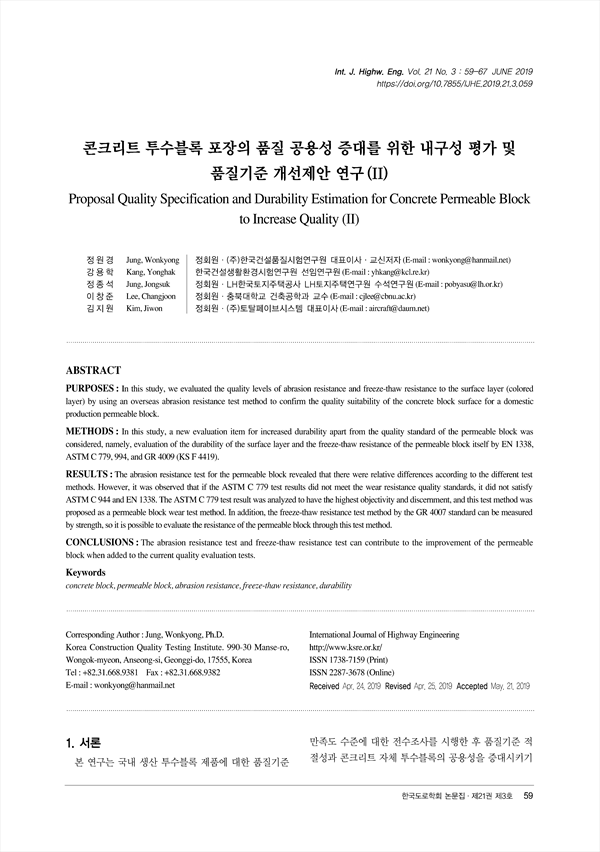

PURPOSES : In this study, we evaluated the quality levels of abrasion resistance and freeze-thaw resistance to the surface layer (colored layer) by using an overseas abrasion resistance test method to confirm the quality suitability of the concrete block surface for a domestic production permeable block.
METHODS : In this study, a new evaluation item for increased durability apart from the quality standard of the permeable block was considered, namely, evaluation of the durability of the surface layer and the freeze-thaw resistance of the permeable block itself by EN 1338, ASTM C 779, 994, and GR 4009 (KS F 4419).
RESULTS : The abrasion resistance test for the permeable block revealed that there were relative differences according to the different test methods. However, it was observed that if the ASTM C 779 test results did not meet the wear resistance quality standards, it did not satisfy ASTM C 944 and EN 1338. The ASTM C 779 test result was analyzed to have the highest objectivity and discernment, and this test method was proposed as a permeable block wear test method. In addition, the freeze-thaw resistance test method by the GR 4007 standard can be measured by strength, so it is possible to evaluate the resistance of the permeable block through this test method.
CONCLUSIONS : The abrasion resistance test and freeze-thaw resistance test can contribute to the improvement of the permeable block when added to the current quality evaluation tests.
1. 서론
2. 콘크리트 투수블록 내구성 평가 방안
2.1. 내마모성 평가방안
2.2. 내동결성 평가 개요
3. 실험방법 및 내용
3.1. 시험계획
3.2. 내마모성 시험방법
3.3. 내동결성 시험방법
4. 실험결과
4.1. 투수블록 내마모성 평가결과
4.2. 마모저항성 시험법 간 상관성 분석
4.3. 투수블록의 내동결성 평가 결과
5. 결론
REFERENCES
