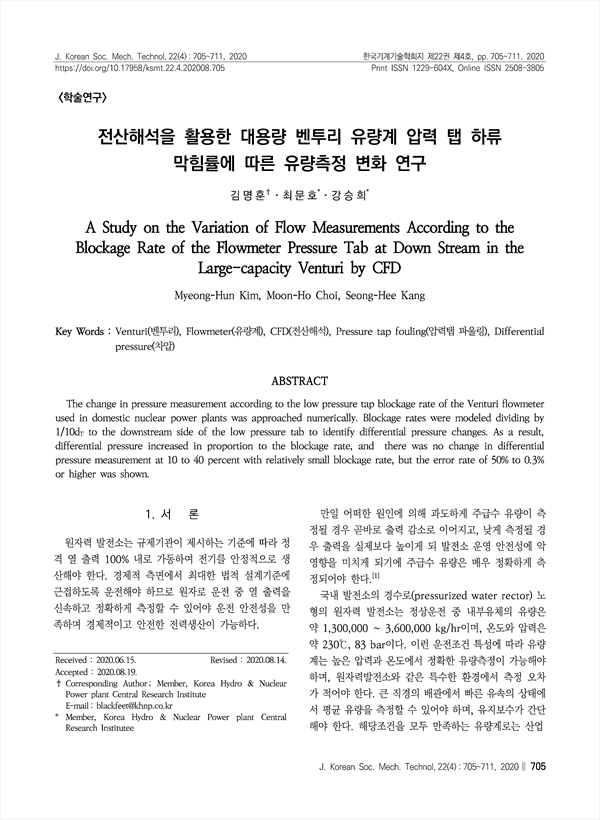

전산해석을 활용한 대용량 벤투리 유량계 압력 탭 하류 막힘률에 따른 유량측정 변화 연구 KCI 등재
A Study on the Variation of Flow Measurements According to the Blockage Rate of the Flowmeter Pressure Tab at Down Stream in the Large-capacity Venturi by CFD
김명훈, 최문호, 강승희
- 언어KOR
- URLhttps://db.koreascholar.com/Article/Detail/398662
4,000원
한국기계항공기술학회지(구 한국기계기술학회지)
(Journal of the Korean Society of Mechanical and Aviation Technology)
제22권 제4호 (2020.08)
pp.705-711
pp.705-711
한국기계항공기술학회(구 한국기계기술학회)
(Korean Society of Mechanical Technology)
초록
The change in pressure measurement according to the low pressure tap blockage rate of the Venturi flowmeter used in domestic nuclear power plants was approached numerically. Blockage rates were modeled dividing by 1/10dT to the downstream side of the low pressure tab to identify differential pressure changes. As a result, differential pressure increased in proportion to the blockage rate, and there was no change in differential pressure measurement at 10 to 40 percent with relatively small blockage rate, but the error rate of 50% to 0.3% or higher was shown.
키워드
Venturi벤투리Flowmeter유량계CFD전산해석Pressure tap fouling압력탭 파울링Differential pressure차압
