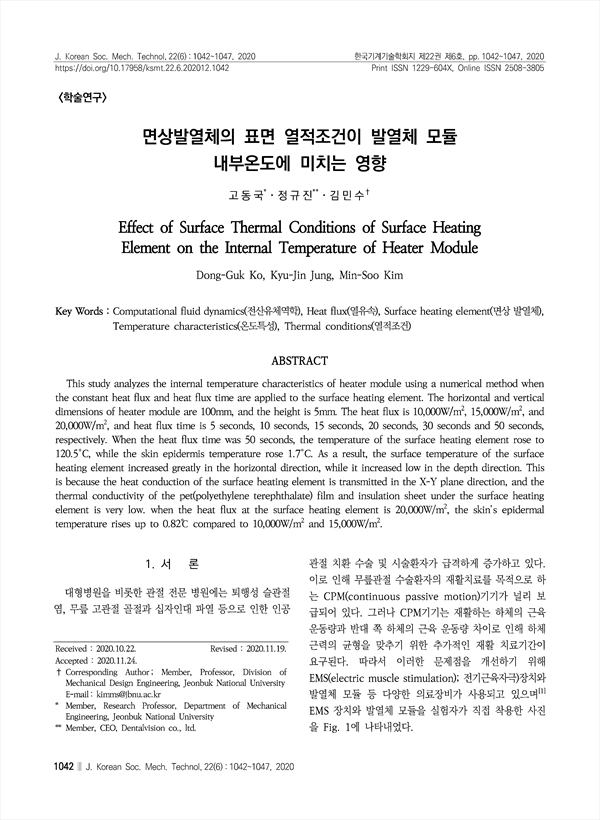

면상발열체의 표면 열적조건이 발열체 모듈 내부온도에 미치는 영향 KCI 등재

Effect of Surface Thermal Conditions of Surface Heating Element on the Internal Temperature of Heater Module

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/404398
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

This study analyzes the internal temperature characteristics of heater module using a numerical method when the constant heat flux and heat flux time are applied to the surface heating element. The horizontal and vertical dimensions of heater module are 100mm, and the height is 5mm. The heat flux is 10,000W/m2, 15,000W/m2, and 20,000W/m2, and heat flux time is 5 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds and 50 seconds, respectively. When the heat flux time was 50 seconds, the temperature of the surface heating element rose to 120.5°C, while the skin epidermis temperature rose 1.7°C. As a result, the surface temperature of the surface heating element increased greatly in the horizontal direction, while it increased low in the depth direction. This is because the heat conduction of the surface heating element is transmitted in the X-Y plane direction, and the thermal conductivity of the pet(polyethylene terephthalate) film and insulation sheet under the surface heating element is very low. when the heat flux at the surface heating element is 20,000W/m2, the skin's epidermal temperature rises up to 0.82℃ compared to 10,000W/m2 and 15,000W/m2.

저자
  • 고동국(전북대학교) | Ko Dong Guk
  • 정규진((주)덴탈비전) | Kyu-Jin Jung
  • 김민수(전북대학교) | Kim Min Soo 교신
