논문 상세보기

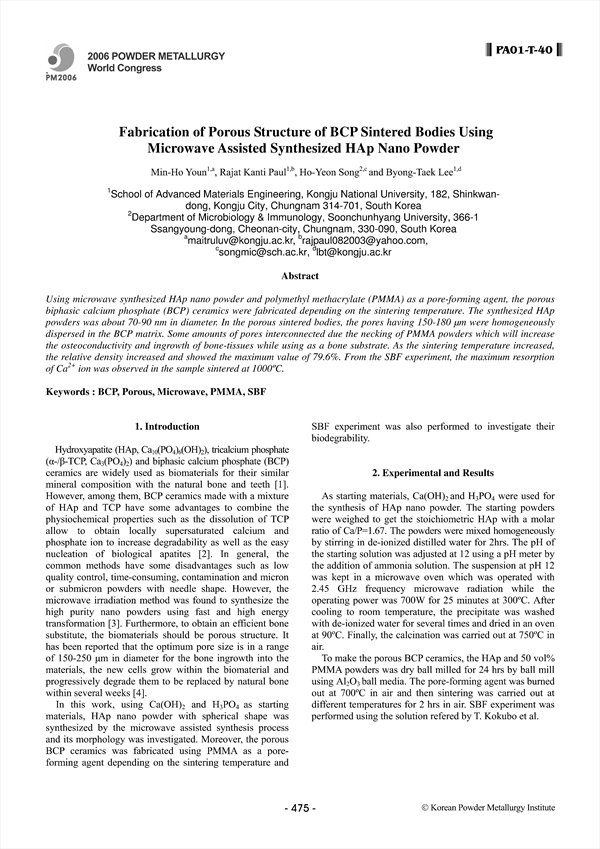

Fabrication of Porous Structure of BCP Sintered Bodies Using Microwave Assisted Synthesized HAp Nano Powder
- 언어KOR
- URLhttps://db.koreascholar.com/Article/Detail/4067
한국분말야금학회 2006년도 춘계학술대회논문집 (2006.04)
pp.475-476
pp.475-476
한국분말재료학회(구 한국분말야금학회)
(Korean Powder Metallurgy Institute)
초록
Using microwave synthesized HAp nano powder and polymethyl methacrylate (PMMA) as a pore-forming agent, the porous biphasic calcium phosphate (BCP) ceramics were fabricated depending on the sintering temperature. The synthesized HAp powders was about 70-90 nm in diameter. In the porous sintered bodies, the pores having were homogeneously dispersed in the BCP matrix. Some amounts of pores interconnected due the necking of PMMA powders which will increase the osteoconductivity and ingrowth of bone-tissues while using as a bone substrate. As the sintering temperature increased, the relative density increased and showed the maximum value of 79.6%. From the SBF experiment, the maximum resorption of ion was observed in the sample sintered at .
저자
