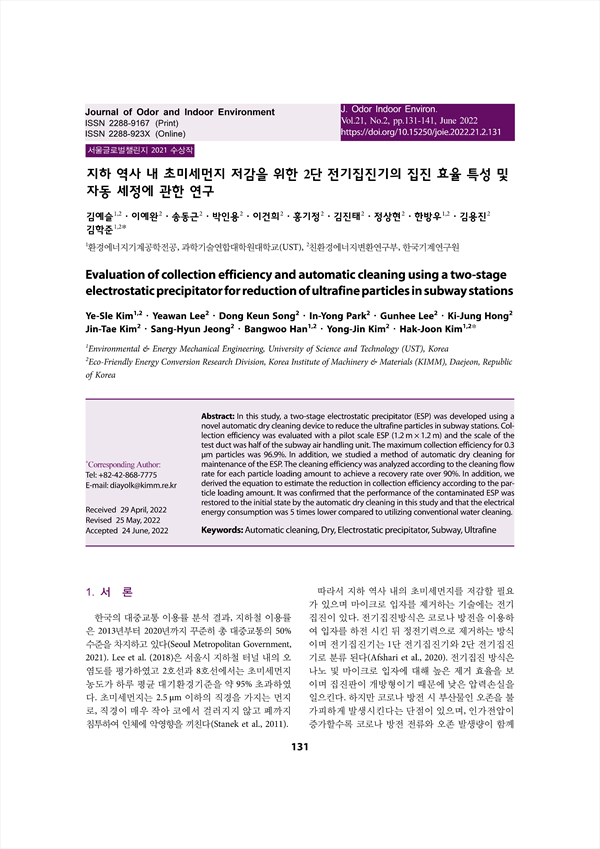

지하 역사 내 초미세먼지 저감을 위한 2단 전기집진기의 집진 효율 특성 및 자동 세정에 관한 연구 KCI 등재
Evaluation of collection efficiency and automatic cleaning using a two-stage electrostatic precipitator for reduction of ultrafine particles in subway stations
pp.131-141
In this study, a two-stage electrostatic precipitator (ESP) was developed using a novel automatic dry cleaning device to reduce the ultrafine particles in subway stations. Collection efficiency was evaluated with a pilot scale ESP (1.2m× 1.2m) and the scale of the test duct was half of the subway air handling unit. The maximum collection efficiency for 0.3 μm particles was 96.9%. In addition, we studied a method of automatic dry cleaning for maintenance of the ESP. The cleaning efficiency was analyzed according to the cleaning flow rate for each particle loading amount to achieve a recovery rate over 90%. In addition, we derived the equation to estimate the reduction in collection efficiency according to the particle loading amount. It was confirmed that the performance of the contaminated ESP was restored to the initial state by the automatic dry cleaning in this study and that the electrical energy consumption was 5 times lower compared to utilizing conventional water cleaning.
1. 서 론
2. 연구방법
2.1 Scale-up 2단 전기집진기의 집진 효율 시험 setup
2.2 집진 효율 측정 방법
2.3 자동 건식 세정 장치 set-up
3. 결과 및 고찰
3.1 2단 전기집진기의 집진 효율 측정
3.2 2단 전기집진기의 건식 자동 세정 연구
4. 결 론
감사의 글
References
