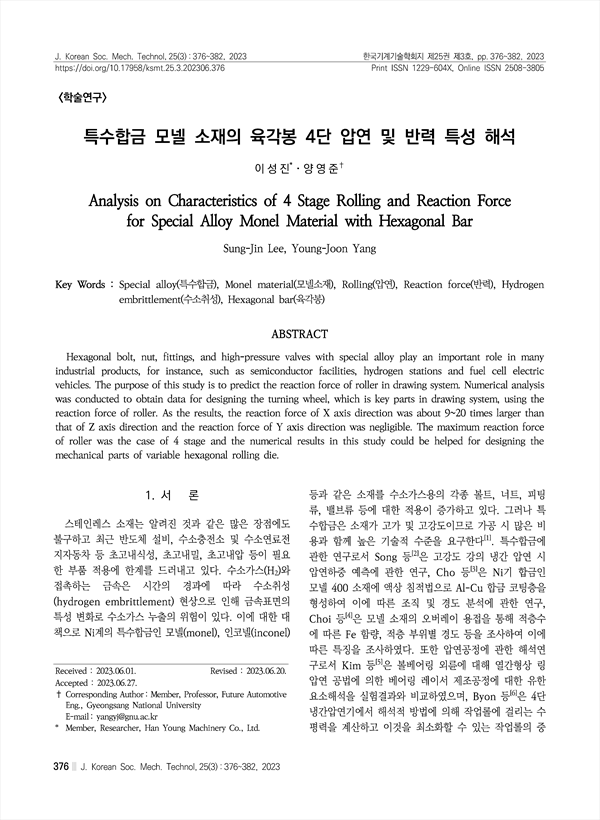

Hexagonal bolt, nut, fittings, and high-pressure valves with special alloy play an important role in many industrial products, for instance, such as semiconductor facilities, hydrogen stations and fuel cell electric vehicles. The purpose of this study is to predict the reaction force of roller in drawing system. Numerical analysis was conducted to obtain data for designing the turning wheel, which is key parts in drawing system, using the reaction force of roller. As the results, the reaction force of X axis direction was about 9~20 times larger than that of Z axis direction and the reaction force of Y axis direction was negligible. The maximum reaction force of roller was the case of 4 stage and the numerical results in this study could be helped for designing the mechanical parts of variable hexagonal rolling die.

• 이성진 (한영기계) | 이성진
• 양영준 (경상국립대학교) | 양영준 Corresponding author
