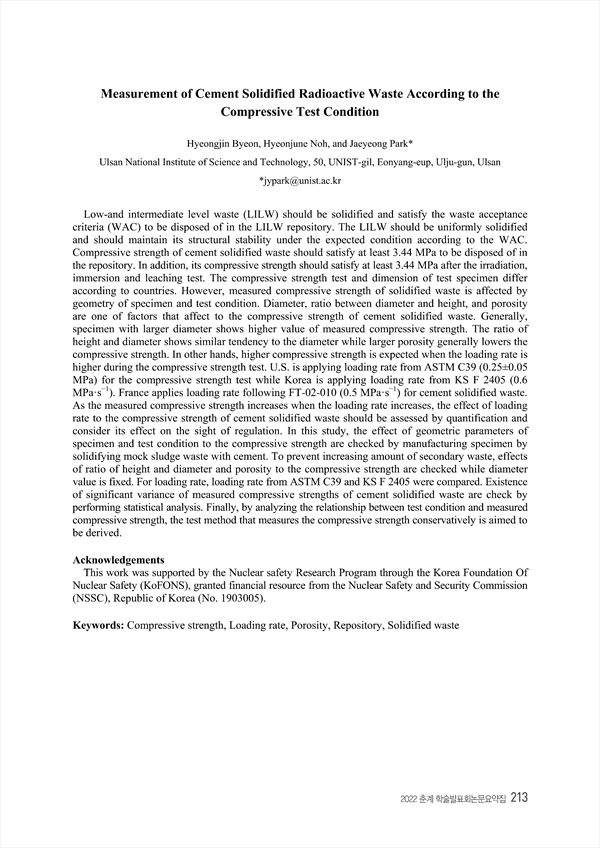

Measurement of Cement Solidified Radioactive Waste According to the Compressive Test Condition
- 언어ENG
- URLhttps://db.koreascholar.com/Article/Detail/430497
p.213
Low-and intermediate level waste (LILW) should be solidified and satisfy the waste acceptance criteria (WAC) to be disposed of in the LILW repository. The LILW should be uniformly solidified and should maintain its structural stability under the expected condition according to the WAC. Compressive strength of cement solidified waste should satisfy at least 3.44 MPa to be disposed of in the repository. In addition, its compressive strength should satisfy at least 3.44 MPa after the irradiation, immersion and leaching test. The compressive strength test and dimension of test specimen differ according to countries. However, measured compressive strength of solidified waste is affected by geometry of specimen and test condition. Diameter, ratio between diameter and height, and porosity are one of factors that affect to the compressive strength of cement solidified waste. Generally, specimen with larger diameter shows higher value of measured compressive strength. The ratio of height and diameter shows similar tendency to the diameter while larger porosity generally lowers the compressive strength. In other hands, higher compressive strength is expected when the loading rate is higher during the compressive strength test. U.S. is applying loading rate from ASTM C39 (0.25±0.05 MPa) for the compressive strength test while Korea is applying loading rate from KS F 2405 (0.6 MPa·s−1). France applies loading rate following FT-02-010 (0.5 MPa·s−1) for cement solidified waste. As the measured compressive strength increases when the loading rate increases, the effect of loading rate to the compressive strength of cement solidified waste should be assessed by quantification and consider its effect on the sight of regulation. In this study, the effect of geometric parameters of specimen and test condition to the compressive strength are checked by manufacturing specimen by solidifying mock sludge waste with cement. To prevent increasing amount of secondary waste, effects of ratio of height and diameter and porosity to the compressive strength are checked while diameter value is fixed. For loading rate, loading rate from ASTM C39 and KS F 2405 were compared. Existence of significant variance of measured compressive strengths of cement solidified waste are check by performing statistical analysis. Finally, by analyzing the relationship between test condition and measured compressive strength, the test method that measures the compressive strength conservatively is aimed to be derived.
