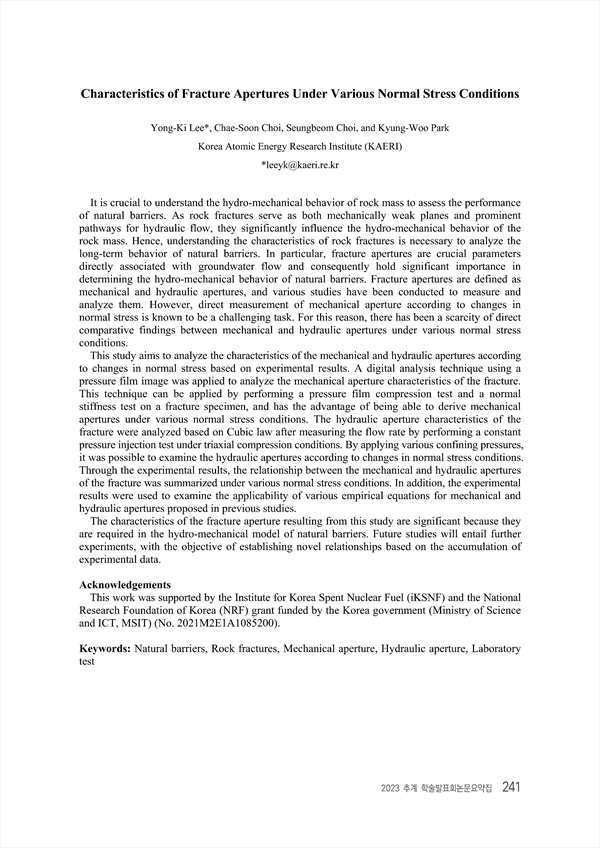

It is crucial to understand the hydro-mechanical behavior of rock mass to assess the performance of natural barriers. As rock fractures serve as both mechanically weak planes and prominent pathways for hydraulic flow, they significantly influence the hydro-mechanical behavior of the rock mass. Hence, understanding the characteristics of rock fractures is necessary to analyze the long-term behavior of natural barriers. In particular, fracture apertures are crucial parameters directly associated with groundwater flow and consequently hold significant importance in determining the hydro-mechanical behavior of natural barriers. Fracture apertures are defined as mechanical and hydraulic apertures, and various studies have been conducted to measure and analyze them. However, direct measurement of mechanical aperture according to changes in normal stress is known to be a challenging task. For this reason, there has been a scarcity of direct comparative findings between mechanical and hydraulic apertures under various normal stress conditions. This study aims to analyze the characteristics of the mechanical and hydraulic apertures according to changes in normal stress based on experimental results. A digital analysis technique using a pressure film image was applied to analyze the mechanical aperture characteristics of the fracture. This technique can be applied by performing a pressure film compression test and a normal stiffness test on a fracture specimen, and has the advantage of being able to derive mechanical apertures under various normal stress conditions. The hydraulic aperture characteristics of the fracture were analyzed based on Cubic law after measuring the flow rate by performing a constant pressure injection test under triaxial compression conditions. By applying various confining pressures, it was possible to examine the hydraulic apertures according to changes in normal stress conditions. Through the experimental results, the relationship between the mechanical and hydraulic apertures of the fracture was summarized under various normal stress conditions. In addition, the experimental results were used to examine the applicability of various empirical equations for mechanical and hydraulic apertures proposed in previous studies. The characteristics of the fracture aperture resulting from this study are significant because they are required in the hydro-mechanical model of natural barriers. Future studies will entail further experiments, with the objective of establishing novel relationships based on the accumulation of experimental data.

• Yong-Ki Lee(Korea Atomic Energy Research Institute (KAERI)) Corresponding author
• Chae-Soon Choi(Korea Atomic Energy Research Institute (KAERI))
• Seungbeom Choi(Korea Atomic Energy Research Institute (KAERI))
• Kyung-Woo Park(Korea Atomic Energy Research Institute (KAERI))
