pp.19-32

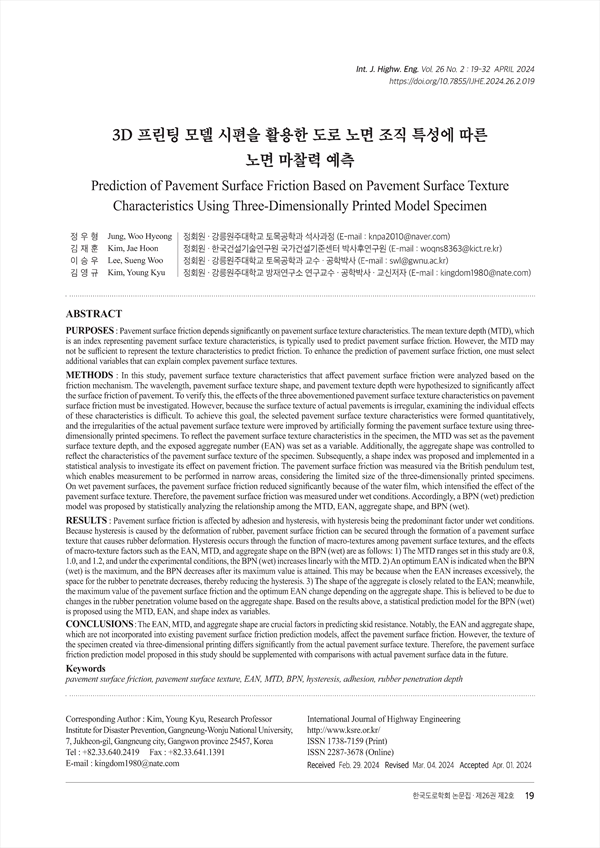

PURPOSES : Pavement surface friction depends significantly on pavement surface texture characteristics. The mean texture depth (MTD), which is an index representing pavement surface texture characteristics, is typically used to predict pavement surface friction. However, the MTD may not be sufficient to represent the texture characteristics to predict friction. To enhance the prediction of pavement surface friction, one must select additional variables that can explain complex pavement surface textures. METHODS : In this study, pavement surface texture characteristics that affect pavement surface friction were analyzed based on the friction mechanism. The wavelength, pavement surface texture shape, and pavement texture depth were hypothesized to significantly affect the surface friction of pavement. To verify this, the effects of the three abovementioned pavement surface texture characteristics on pavement surface friction must be investigated. However, because the surface texture of actual pavements is irregular, examining the individual effects of these characteristics is difficult. To achieve this goal, the selected pavement surface texture characteristics were formed quantitatively, and the irregularities of the actual pavement surface texture were improved by artificially forming the pavement surface texture using threedimensionally printed specimens. To reflect the pavement surface texture characteristics in the specimen, the MTD was set as the pavement surface texture depth, and the exposed aggregate number (EAN) was set as a variable. Additionally, the aggregate shape was controlled to reflect the characteristics of the pavement surface texture of the specimen. Subsequently, a shape index was proposed and implemented in a statistical analysis to investigate its effect on pavement friction. The pavement surface friction was measured via the British pendulum test, which enables measurement to be performed in narrow areas, considering the limited size of the three-dimensionally printed specimens. On wet pavement surfaces, the pavement surface friction reduced significantly because of the water film, which intensified the effect of the pavement surface texture. Therefore, the pavement surface friction was measured under wet conditions. Accordingly, a BPN (wet) prediction model was proposed by statistically analyzing the relationship among the MTD, EAN, aggregate shape, and BPN (wet). RESULTS : Pavement surface friction is affected by adhesion and hysteresis, with hysteresis being the predominant factor under wet conditions. Because hysteresis is caused by the deformation of rubber, pavement surface friction can be secured through the formation of a pavement surface texture that causes rubber deformation. Hysteresis occurs through the function of macro-textures among pavement surface textures, and the effects of macro-texture factors such as the EAN, MTD, and aggregate shape on the BPN (wet) are as follows: 1) The MTD ranges set in this study are 0.8, 1.0, and 1.2, and under the experimental conditions, the BPN (wet) increases linearly with the MTD. 2) An optimum EAN is indicated when the BPN (wet) is the maximum, and the BPN decreases after its maximum value is attained. This may be because when the EAN increases excessively, the space for the rubber to penetrate decreases, thereby reducing the hysteresis. 3) The shape of the aggregate is closely related to the EAN; meanwhile, the maximum value of the pavement surface friction and the optimum EAN change depending on the aggregate shape. This is believed to be due to changes in the rubber penetration volume based on the aggregate shape. Based on the results above, a statistical prediction model for the BPN (wet) is proposed using the MTD, EAN, and shape index as variables. CONCLUSIONS : The EAN, MTD, and aggregate shape are crucial factors in predicting skid resistance. Notably, the EAN and aggregate shape, which are not incorporated into existing pavement surface friction prediction models, affect the pavement surface friction. However, the texture of the specimen created via three-dimensional printing differs significantly from the actual pavement surface texture. Therefore, the pavement surface friction prediction model proposed in this study should be supplemented with comparisons with actual pavement surface data in the future.
2. 노면 마찰력의 메커니즘 및 영향 인자
2.1. Adhesion, Hysteresis 발생 메커니즘
2.2. 노면 마찰력 영향 인자 및 기존 노면 마찰력 예측모델의 한계점
3. 노면 조직 특성과 노면 마찰력의 관계 검토 및실험 계획
3.1. 실험 계획을 위한 노면 조직 변수와 노면 마찰력관계 검토
3.2. 실험 계획
3.3. BPT 측정 방안 및 결과
4. 노면 마찰력 예측 모델 선정 및 검증
4.1. 노면 조직 변수와 노면 마찰력의 상관성 분석
4.2. 상관성 분석 결과를 통한 적정 함수 모델 선정
5. 결론
REFERENCES
