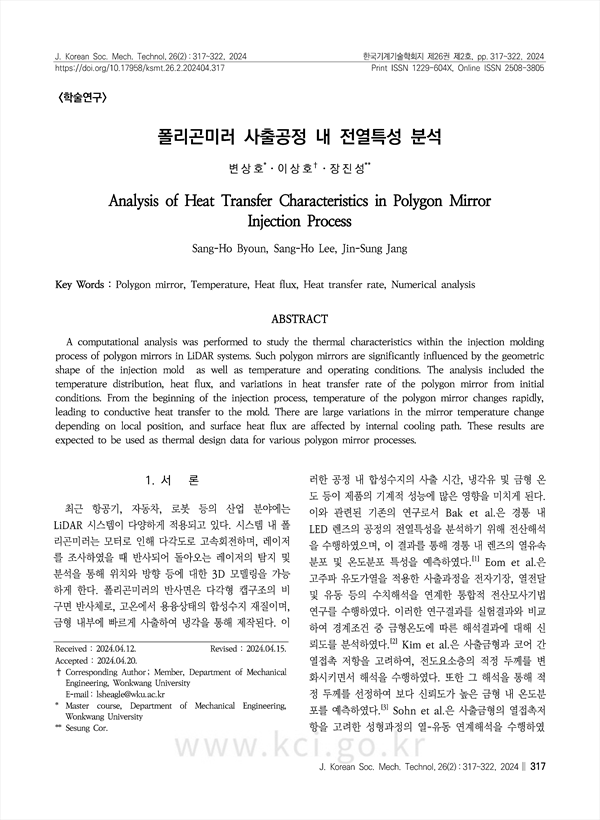

A computational analysis was performed to study the thermal characteristics within the injection molding process of polygon mirrors in LiDAR systems. Such polygon mirrors are significantly influenced by the geometric shape of the injection mold as well as temperature and operating conditions. The analysis included the temperature distribution, heat flux, and variations in heat transfer rate of the polygon mirror from initial conditions. From the beginning of the injection process, temperature of the polygon mirror changes rapidly, leading to conductive heat transfer to the mold. There are large variations in the mirror temperature change depending on local position, and surface heat flux are affected by internal cooling path. These results are expected to be used as thermal design data for various polygon mirror processes.

• 변상호(원광대학교 기계공학과) | Sang-Ho Byoun
• 이상호(원광대학교) | Lee Sang-Ho Corresponding author
• 장진성 (Sesung Cor.) | Jin-Sung Jang
