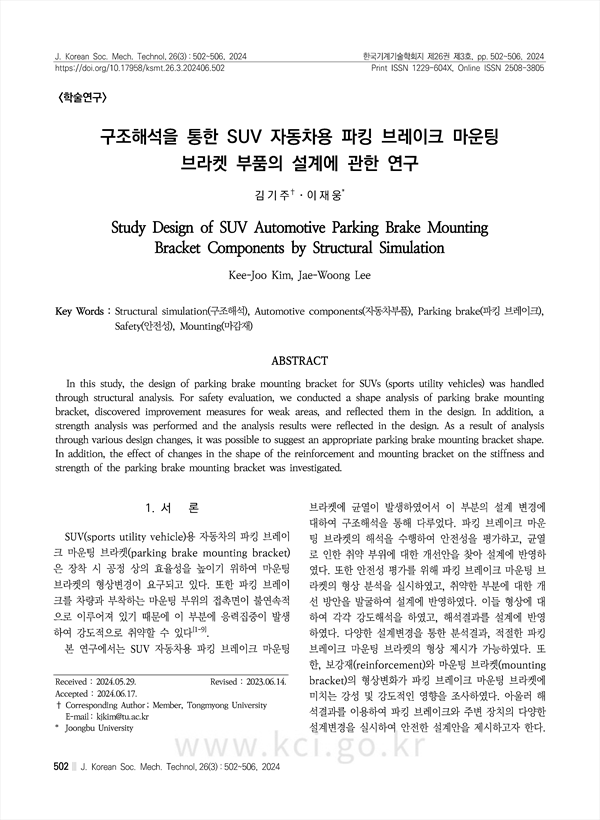

In this study, the design of parking brake mounting bracket for SUVs (sports utility vehicles) was handled through structural analysis. For safety evaluation, we conducted a shape analysis of parking brake mounting bracket, discovered improvement measures for weak areas, and reflected them in the design. In addition, a strength analysis was performed and the analysis results were reflected in the design. As a result of analysis through various design changes, it was possible to suggest an appropriate parking brake mounting bracket shape. In addition, the effect of changes in the shape of the reinforcement and mounting bracket on the stiffness and strength of the parking brake mounting bracket was investigated.

• 김기주(동명대학교) | Kee Joo Kim Corresponding author
• 이재웅(중부대학교) | Jae-Woong Lee
