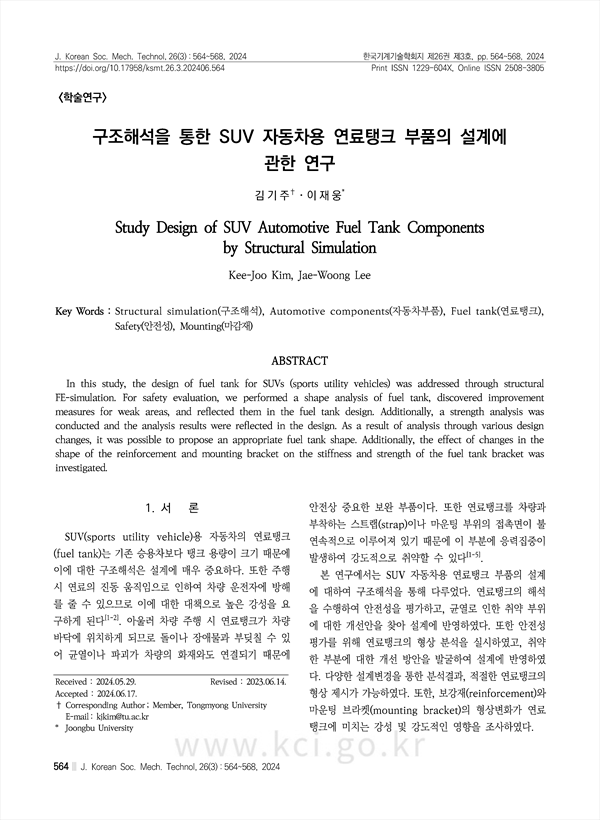

In this study, the design of fuel tank for SUVs (sports utility vehicles) was addressed through structural FE-simulation. For safety evaluation, we performed a shape analysis of fuel tank, discovered improvement measures for weak areas, and reflected them in the fuel tank design. Additionally, a strength analysis was conducted and the analysis results were reflected in the design. As a result of analysis through various design changes, it was possible to propose an appropriate fuel tank shape. Additionally, the effect of changes in the shape of the reinforcement and mounting bracket on the stiffness and strength of the fuel tank bracket was investigated.

• 김기주(동명대학교) | Kee Joo Kim Corresponding author
• 이재웅(중부대학교) | Jae-Woong Lee
