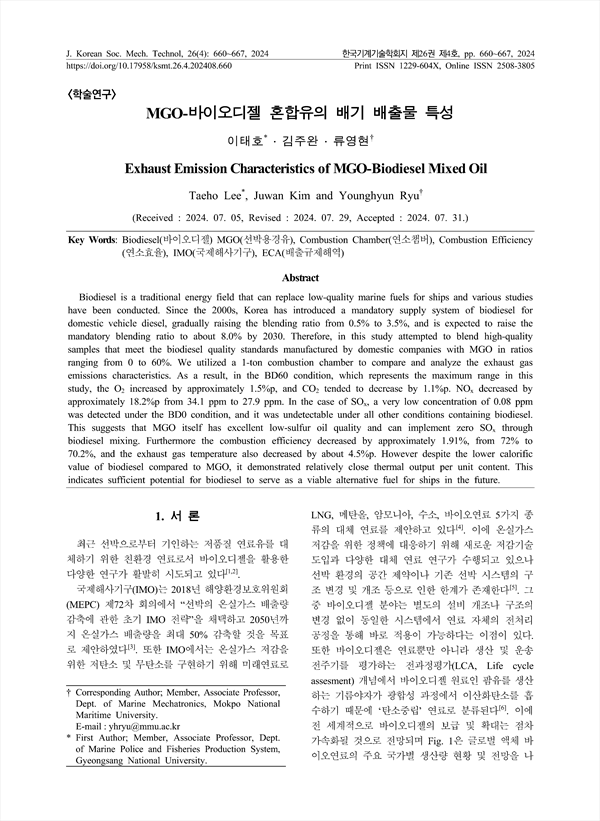

MGO-바이오디젤 혼합유의 배기 배출물 특성 KCI 등재

Exhaust Emission Characteristics of MGO-Biodiesel Mixed Oil

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/437251
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국기계기술학회지 (Journal of the Korean Society of Mechanical Technology)
한국기계기술학회 (Korean Society of Mechanical Technology)
초록

Biodiesel is a traditional energy field that can replace low-quality marine fuels for ships and various studies have been conducted. Since the 2000s, Korea has introduced a mandatory supply system of biodiesel for domestic vehicle diesel, gradually raising the blending ratio from 0.5% to 3.5%, and is expected to raise the mandatory blending ratio to about 8.0% by 2030. Therefore, in this study attempted to blend high-quality samples that meet the biodiesel quality standards manufactured by domestic companies with MGO in ratios ranging from 0 to 60%. We utilized a 1-ton combustion chamber to compare and analyze the exhaust gas emissions characteristics. As a result, in the BD60 condition, which represents the maximum range in this study, the O2 increased by approximately 1.5%p, and CO2 tended to decrease by 1.1%p. NOx decreased by approximately 18.2%p from 34.1 ppm to 27.9 ppm. In the case of SOx, a very low concentration of 0.08 ppm was detected under the BD0 condition, and it was undetectable under all other conditions containing biodiesel. This suggests that MGO itself has excellent low-sulfur oil quality and can implement zero SOx through biodiesel mixing. Furthermore the combustion efficiency decreased by approximately 1.91%, from 72% to 70.2%, and the exhaust gas temperature also decreased by about 4.5%p. However despite the lower calorific value of biodiesel compared to MGO, it demonstrated relatively close thermal output per unit content. This indicates sufficient potential for biodiesel to serve as a viable alternative fuel for ships in the future.

목차
Abstract
1. 서 론
2. MGO-바이오디젤 혼합 공정 설계
    2.1 선박용 경유(MGO, marine gas oil)
    2.2 바이오디젤(biodiesel)
    2.3 MGO-바이오디젤 혼합 및 제조과정
3. 실험장치 및 실험방법
    3.1 표준형 연소 챔버
    3.2 배기 배출물 측정장치
    3.3 배기 배출물 측정 방법
4. 실험 결과
    4.1 배기 배출물 특성
    4.2 배기가스 온도 및 연소 효율
5. 결 론
References
저자
  • 이태호(Associate Professor, Dept. of Marine Police and Fisheries Production System, Gyeongsang National University) | Taeho Lee
  • 김주완(Ph.C and Teacher in Department of Engine, Busan National Maritime High School) | Juwan Kim
  • 류영현(Associate Professor, Dept. of Marine Mechatronics, Mokpo National Maritime University) | Younghyun Ryu Corresponding author
