pp.434-438

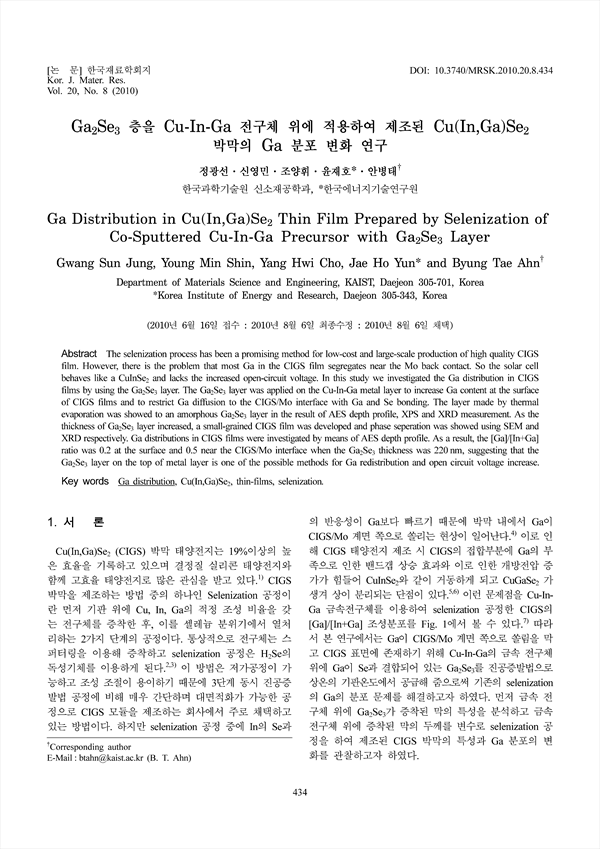

The selenization process has been a promising method for low-cost and large-scale production of high quality CIGS film. However, there is the problem that most Ga in the CIGS film segregates near the Mo back contact. So the solar cell behaves like a CuInSe2 and lacks the increased open-circuit voltage. In this study we investigated the Ga distribution in CIGS films by using the Ga2Se3 layer. The Ga2Se3 layer was applied on the Cu-In-Ga metal layer to increase Ga content at the surface of CIGS films and to restrict Ga diffusion to the CIGS/Mo interface with Ga and Se bonding. The layer made by thermal evaporation was showed to an amorphous Ga2Se3 layer in the result of AES depth profile, XPS and XRD measurement. As the thickness of Ga2Se3 layer increased, a small-grained CIGS film was developed and phase seperation was showed using SEM and XRD respectively. Ga distributions in CIGS films were investigated by means of AES depth profile. As a result, the [Ga]/[In+Ga] ratio was 0.2 at the surface and 0.5 near the CIGS/Mo interface when the Ga2Se3 thickness was 220 nm, suggesting that the Ga2Se3 layer on the top of metal layer is one of the possible methods for Ga redistribution and open circuit voltage increase.
