전해증착 Cu(In,Ga)Se2 태양전지 박막의 열처리 특성 KCI 등재 SCOPUS

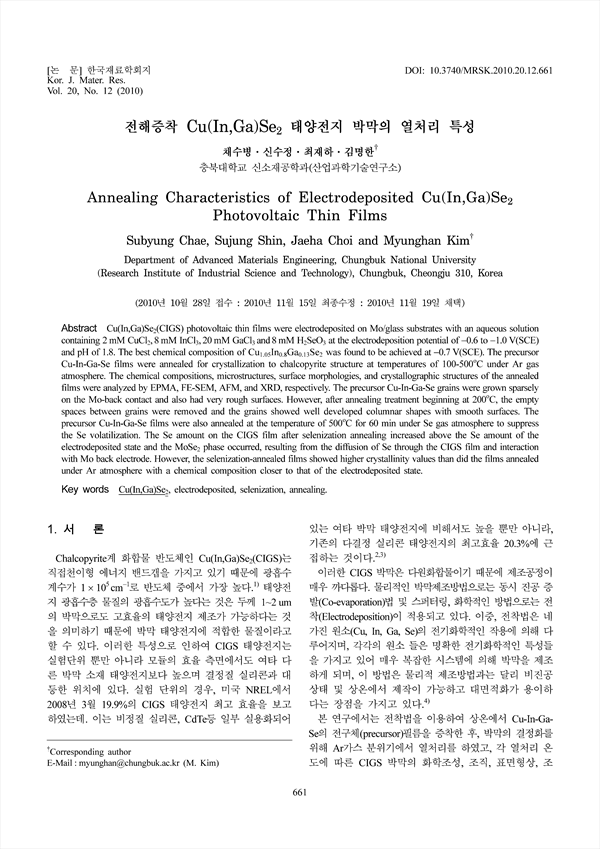

Annealing Characteristics of Electrodeposited Cu(In,Ga)Se2 Photovoltaic Thin Films

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/297154
구독 기관 인증 시 무료 이용이 가능합니다. 4,000원
한국재료학회지 (Korean Journal of Materials Research)
한국재료학회 (Materials Research Society Of Korea)
초록

Cu(In,Ga)Se2(CIGS) photovoltaic thin films were electrodeposited on Mo/glass substrates with an aqueous solution containing 2 mM CuCl2, 8 mM InCl3, 20 mM GaCl3 and 8mM H2SeO3 at the electrodeposition potential of -0.6 to -1.0 V(SCE) and pH of 1.8. The best chemical composition of Cu1.05In0.8Ga0.13Se2 was found to be achieved at -0.7 V(SCE). The precursor Cu-In-Ga-Se films were annealed for crystallization to chalcopyrite structure at temperatures of 100-500˚C under Ar gas atmosphere. The chemical compositions, microstructures, surface morphologies, and crystallographic structures of the annealed films were analyzed by EPMA, FE-SEM, AFM, and XRD, respectively. The precursor Cu-In-Ga-Se grains were grown sparsely on the Mo-back contact and also had very rough surfaces. However, after annealing treatment beginning at 200˚C, the empty spaces between grains were removed and the grains showed well developed columnar shapes with smooth surfaces. The precursor Cu-In-Ga-Se films were also annealed at the temperature of 500˚C for 60 min under Se gas atmosphere to suppress the Se volatilization. The Se amount on the CIGS film after selenization annealing increased above the Se amount of the electrodeposited state and the MoSe2 phase occurred, resulting from the diffusion of Se through the CIGS film and interaction with Mo back electrode. However, the selenization-annealed films showed higher crystallinity values than did the films annealed under Ar atmosphere with a chemical composition closer to that of the electrodeposited state.

저자
  • 채수병 | Chae, Su-Byung
  • 신수정 | 신수정
  • 최재하 | 최재하
  • 김명한 | 김명한
