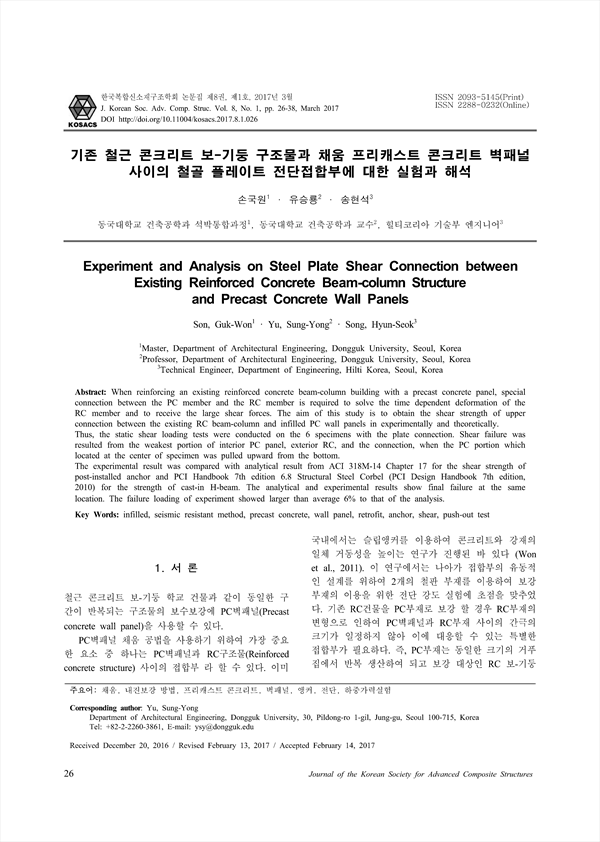

기존 철근 콘크리트 보-기둥 구조물과 채움 프리캐스트 콘크리트 벽패널 사이의 철골 플레이트 전단접합부에 대한 실험과 해석 KCI 등재

Experiment and Analysis on Steel Plate Shear Connection between Existing Reinforced Concrete Beam-column Structure and Precast Concrete Wall Panels

  • 언어KOR
  • URLhttps://db.koreascholar.com/Article/Detail/325274
구독 기관 인증 시 무료 이용이 가능합니다. 4,500원
복합신소재구조학회 논문집 (Journal of the Korean Society for Advanced Composite Structures)
한국복합신소재구조학회 (Korean Society for Advanced Composite Structures)
초록

When reinforcing an existing reinforced concrete beam-column building with a precast concrete panel, special connection between the PC member and the RC member is required to solve the time dependent deformation of the RC member and to receive the large shear forces. The aim of this study is to obtain the shear strength of upper connection between the existing RC beam-column and infilled PC wall panels in experimentally and theoretically.
Thus, the static shear loading tests were conducted on the 6 specimens with the plate connection. Shear failure was resulted from the weakest portion of interior PC panel, exterior RC, and the connection, when the PC portion which located at the center of specimen was pulled upward from the bottom. T
he experimental result was compared with analytical result from ACI 318M-14 Chapter 17 for the shear strength of post-installed anchor and PCI Handbook 7th edition 6.8 Structural Steel Corbel (PCI Design Handbook 7th edition, 2010) for the strength of cast-in H-beam. The analytical and experimental results show final failure at the same location. The failure loading of experiment showed larger than average 6% to that of the analysis.

목차
1. 서 론
 2. 프리캐스트 콘크리트와 기존 철근콘크리트 사이의 전단 접합부
 3. 전단 실험체
  3.1 실험체 명
  3.2 재료
  3.3 실험체 설계
  3.4 접합부 설계
 4. 전단강도 계산
  4.1 RC 부분, 후설치 앵커 전단 강도
  4.2 PC 부분, 선설치 철판 전단 강도
  4.3 접합부 부분, 철판과 용접부위 전단강도
 5. 실험 결과 및 분석
  6. 결 론
 5.1 실험체 균열과 파괴 거동
 5.2 실험체 실험 강도
 감사의 글
 REFERENCES
저자
  • 손국원(동국대학교 건축공학과 석박통합과정) | Son, Guk-Won
  • 유승룡(동국대학교 건축공학과 교수) | Yu, Sung-Yong
  • 송현석(힐티코리아 기술부 엔지니어) | Song, Hyun-Seok Corresponding author
