논문 상세보기

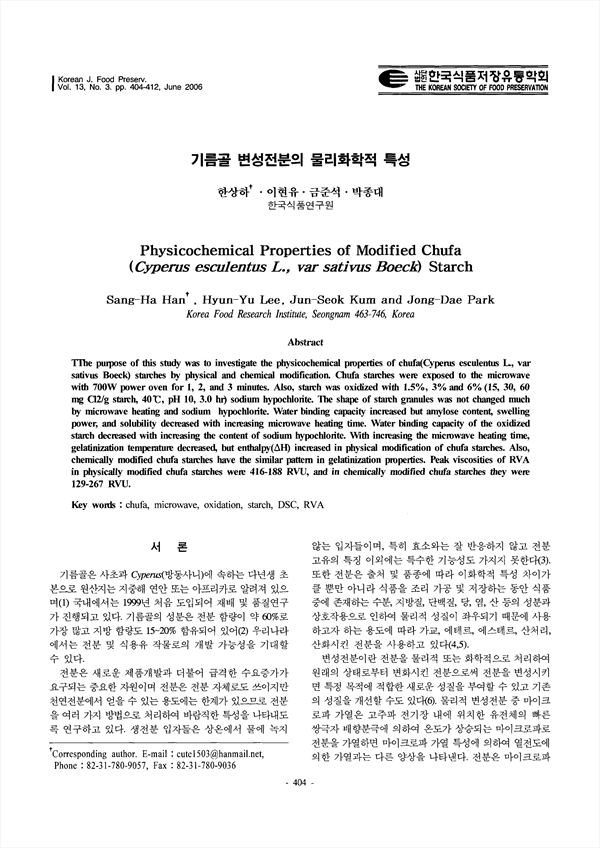

pp.404-412
기름골 변성전분의 이화학적 특성 및 호화 특성을 알아보기 위해 전분을 분리한 후 마이크로파(700W)에 의해 60초, 120초 180초 동안 각각 직접 가열한 물리적 변성전분과 차아염소산나트륨을 1.5%, 3%, 6%로 각각 반응시킨 화학적 변성전분인 산화전분을 제조하였다. 아밀로오스 함량, blue value, 최대흡수파장 및 흡광도는 마이크로파에 의한 변성전분의 경우 가열시간이 증가함에 따라 감소하였고 산화전분의 경우에도 농도가 증가함에 따
TThe purpose of this study was to investigate the physicochemical properties of chufa(Cyperus esculentus L., var sativus Boeck) starches by physical and chemical modification. Chufa starches were exposed to the microwave with 700W power oven for 1, 2, and 3 minutes. Also, starch was oxidized with 1.5%, 3% and 6% (15, 30, 60 mg Cl2/g starch , pH 10, 3.0 hr) sodium hypochlorite. The shape of starch granules was not changed much by microwave heating and sodium hypochlorite. Water binding capacity increased but amylose content swelling power, and solubility decreased with increasing microwave heating time. Water binding capacity of the oxidized starch decreased with increasing the content of sodium hypochlorite. With increasing the microwave heating time, gelatinization temperature decreased, but enthalpy() increased in physical modification of chufa starches. Also, chemically modified chufa starches have the similar pattern in gelatinization properties. Peak viscosities of RVA in physically modified chufa starches were 416-188 RVU, and in chemically modified chufa starches they were 129-267 RVU.
