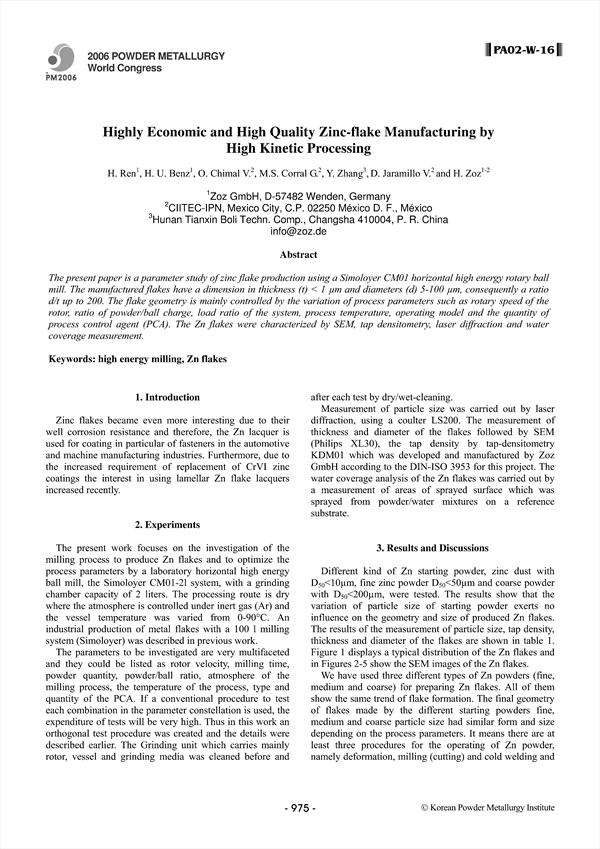

The present paper is a parameter study of zinc flake production using a Simoloyer CM01 horizontal high energy rotary ball mill. The manufactured flakes have a dimension in thickness (t) < 1μm and diameters (d) 5-100 μm, consequently a ratio d/t up to 200. The flake geometry is mainly controlled by the variation of process parameters such as rotary speed of the rotor, ratio of powder/ball charge, load ratio of the system, process temperature, operating model and the quantity of process control agent (PCA). The Zn flakes were characterized by SEM, tap densitometry, laser diffraction and water coverage measurement.

• Ren
• H.
• Benz
• H.U.
• Chimal V.
• O.
• Corral G.
• M.S.
• Zhang
• Y.
• Jaramillo V.
• D.
• Zoz
• H.
