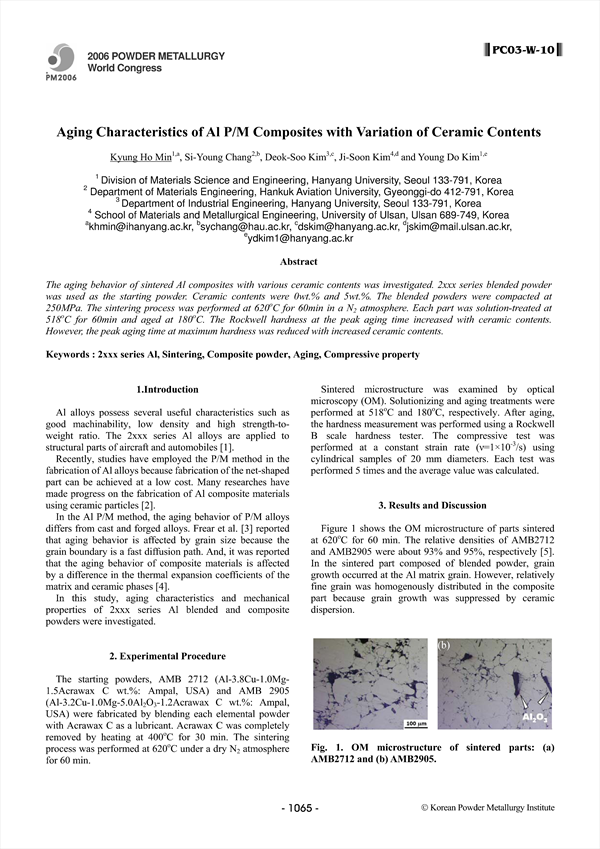

The aging behavior of sintered Al composites with various ceramic contents was investigated. 2xxx series blended powder was used as the starting powder. Ceramic contents were 0wt.% and 5wt.%. The blended powders were compacted at 250MPa. The sintering process was performed at for 60min in a atmosphere. Each part was solution-treated at for 60min and aged at . The Rockwell hardness at the peak aging time increased with ceramic contents. However, the peak aging time at maximum hardness was reduced with increased ceramic contents.

• Min
• Kyung-Ho
• Chang
• Si-Young
• Kim
• Deok-Soo
• Kim
• Ji-Soon
• Kim
• Young-Do
