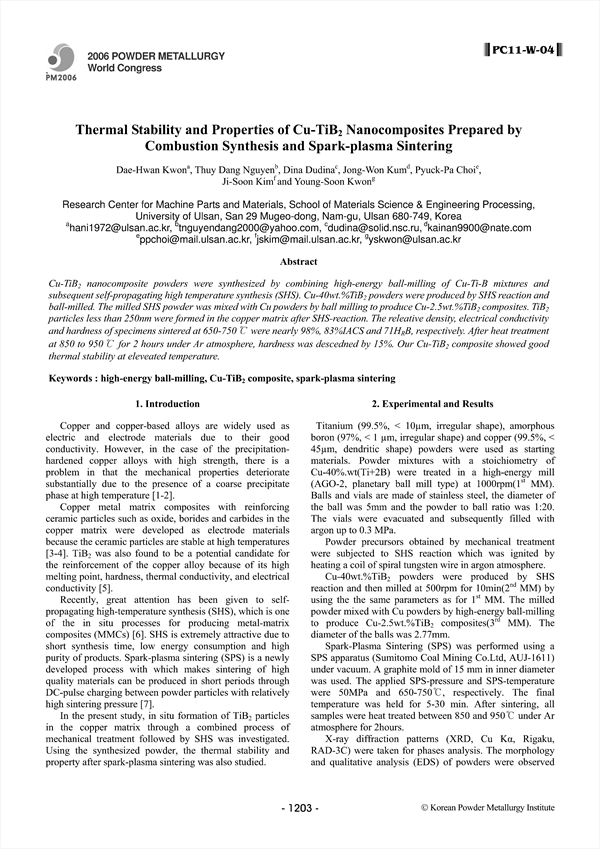

Cu- nanocomposite powders were synthesized by combining high-energy ball-milling of Cu-Ti-B mixtures and subsequent self-propagating high temperature synthesis (SHS). Cu-40wt.% powders were produced by SHS reaction and ball-milled. The milled SHS powder was mixed with Cu powders by ball milling to produce Cu-2.5wt.% composites. particles less than 250nm were formed in the copper matrix after SHS-reaction. The releative density, electrical conductivity and hardness of specimens sintered at were nearly 98%, 83%IACS and 71HRB, respectively. After heat treatment at 850 to for 2 hours under Ar atmosphere, hardness was descedned by 15%. Our Cu- composite showed good thermal stability at eleveated temperature.

• Kwon
• Dae-Hwan
• Nguyen
• Thuy Dang
• Dudina
• Dina
• Kum
• Jong-Won
• Choi
• Pyuck-Pa
• Kim
• Ji-Soon
• Kwon
• Young-Soon
